PAPER FEED
B079/B082 3-50 SM

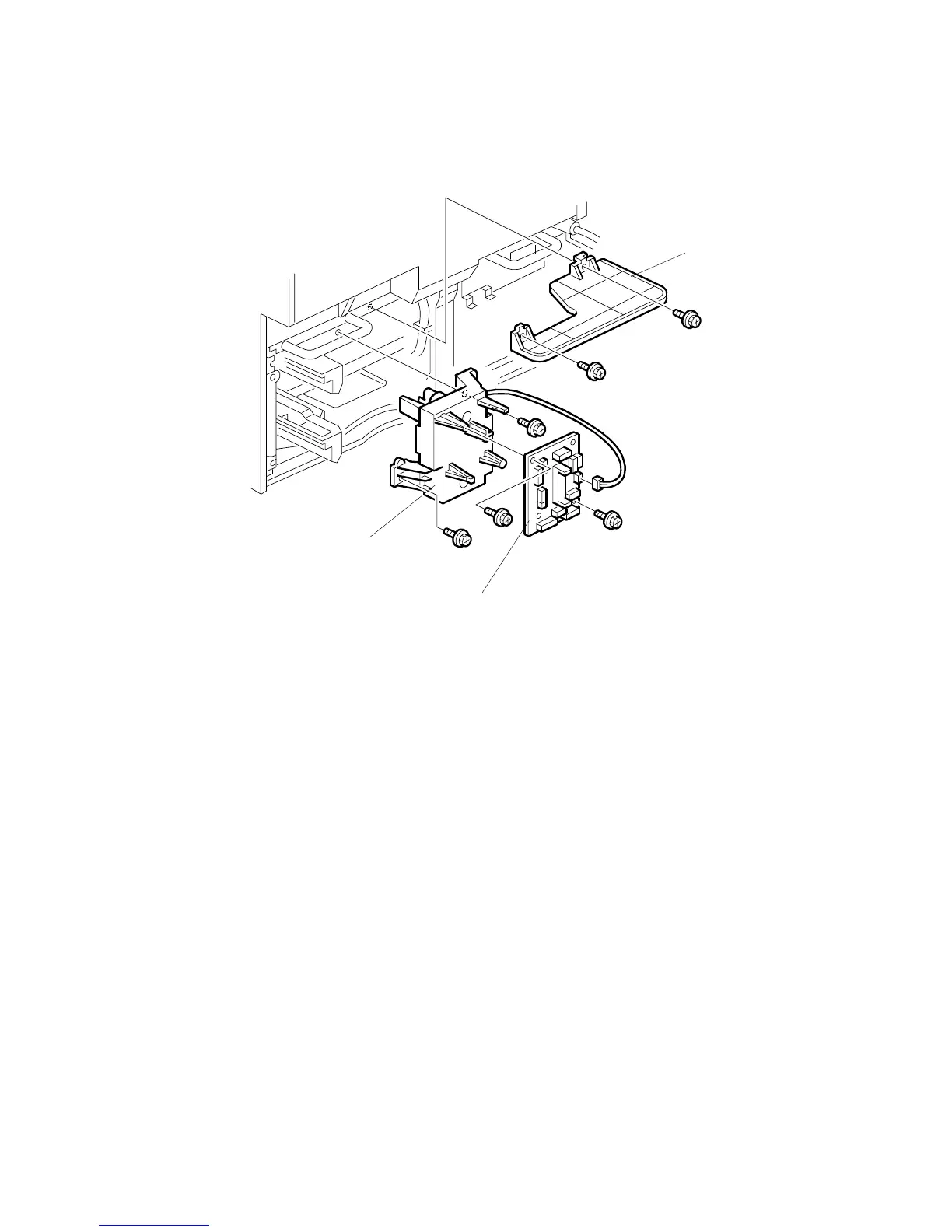

3.14.8 TRAY LIFT MOTOR
1. Rear lower cover (! 3.7.2)
2. Bracket [A] ( x2)
3. Motor control board [B] ( x2, x13)
4. Tray lift motor [C] ( x2)
B004R964.WMF
[A]
[B]
[C]
