Ricoh B079 - Upper Paper Feed Unit for Tray 1

Replacement
Adjustment
PAPER FEED
SM 3-45 B079/B082

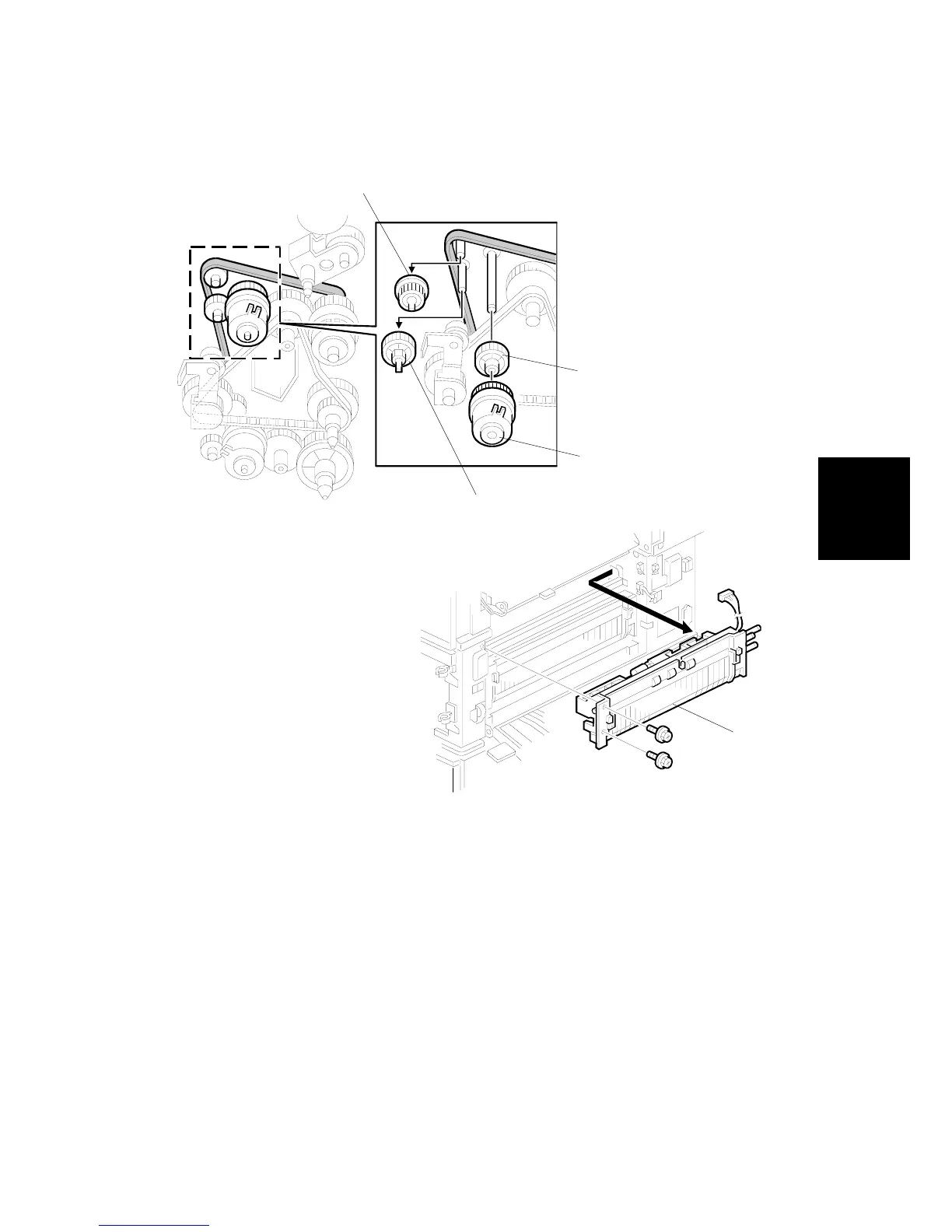

3.14.4 UPPER PAPER FEED UNIT FOR TRAY 1
1. Upper paper tray
2. Right lower cover. (! 3.14.2)
3. Upper right cover (! 3.5)
4. Upper paper feed clutch [A] (! 3.14.3)
5. 3 relay gears [B]
6. Upper paper feed unit [C] ( x2,  x1)
B004R910.WMF
B004R911.WMF
[A]
[B]
[B]
[B]
[C]
