Ricoh B079 - Back Fence Lock Clutch; Tray 1 Shift Motor; Tray Shift Sensors and Tray Release Sensor

TRAY 1 INTERIOR
SM 11 B545
Two-Tray
Finisher
B545

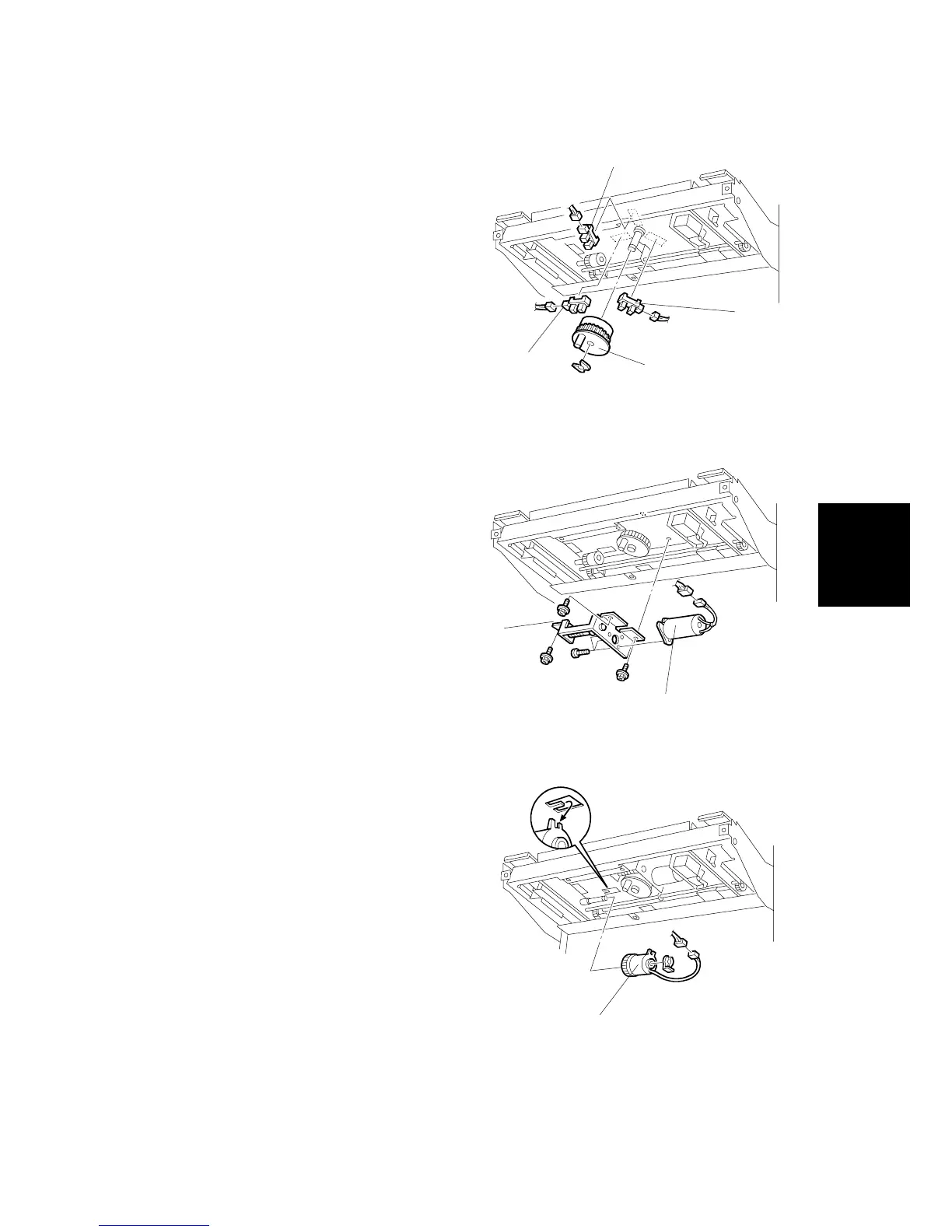

1.14.2 TRAY SHIFT SENSORS AND TRAY RELEASE SENSOR
1. Tray 1 covers (! 1.14.1)
2. Gear disk [A] ( x1)
3. Tray shift sensors [B] ( x1 each).
4. Tray release sensor [C] ( x1)
1.14.3 TRAY 1 SHIFT MOTOR
1. Tray 1 covers (! 1.14.1)
2. Motor bracket [A] ( x3,  x1)
3. Tray 1 shift motor [B] ( x3, belt x1)
1.14.4 BACK FENCE LOCK CLUTCH
1. Tray 1 covers (! 1.14.1)
2. Back fence lock clutch [A] ( x1, 
x1)
B352R210.WMF
B352R209.WMF
B352R211.WMF
[A]
[C]
[A]
[B]
[B]
[B]
[A]
