Ricoh B079 - Feed Motor, Skew Correction Roller Clutch

FEED MOTOR, SKEW CORRECTION ROLLER CLUTCH
B541 8 SM
1.11 FEED MOTOR, SKEW CORRECTION ROLLER
CLUTCH
1. Rear cover (! 1.1)
2. Motor bracket [A] ( x5,  x1)
3. Feed motor [B] (spring [C] x1)
NOTE: To re-install the feed motor, secure the motor after the motor bracket
has been installed.
4. Clutch stopper [D] ( x1)
5. Skew correction roller clutch [E] ( x1)

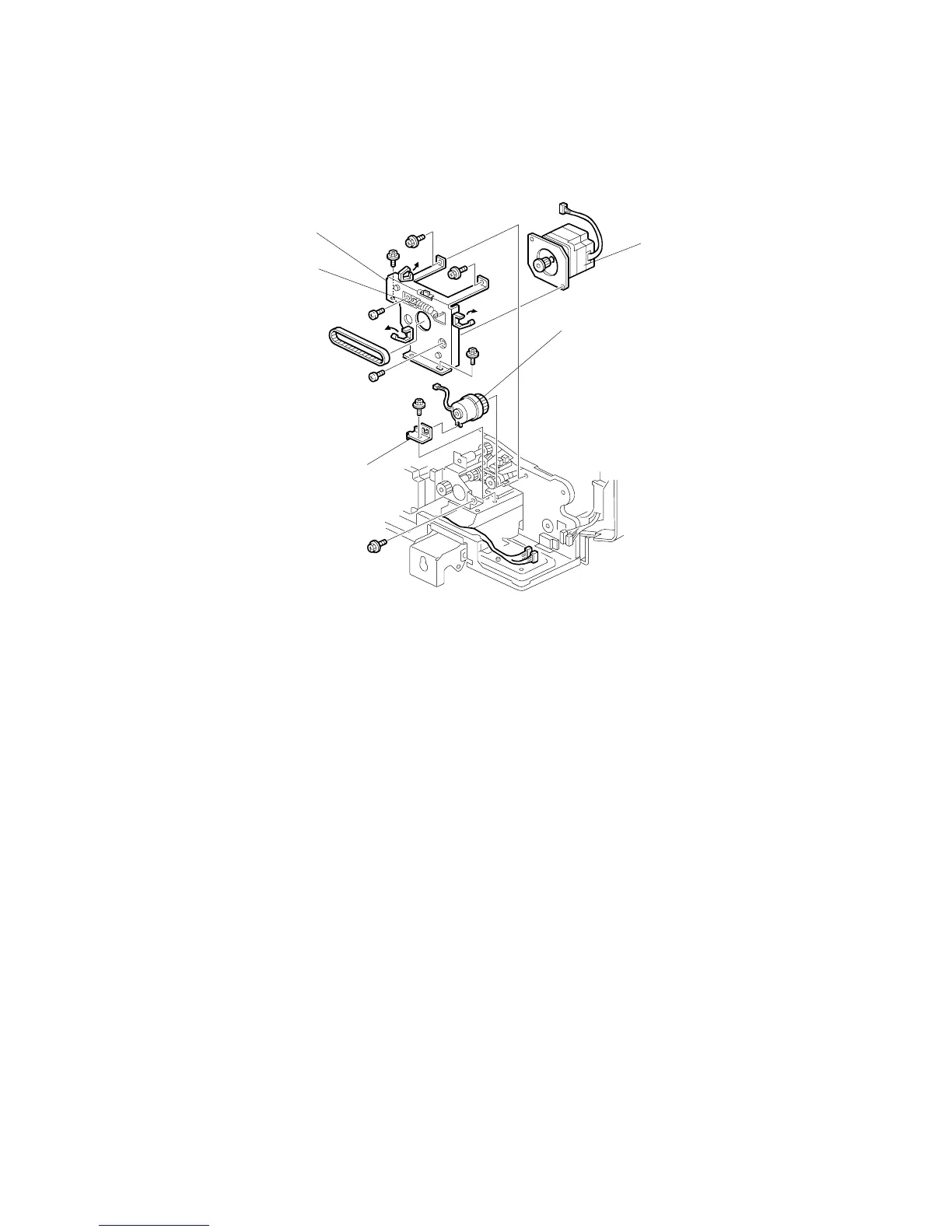

B351R115.WMF
[A]
[B]
[C]
[D]
[E]
