Ricoh B079 - Fusing Unit Side Fan

Replacement
Adjustment
FUSING UNIT
SM 3-59 B079/B082
3.15.7 FUSING UNIT SIDE FAN

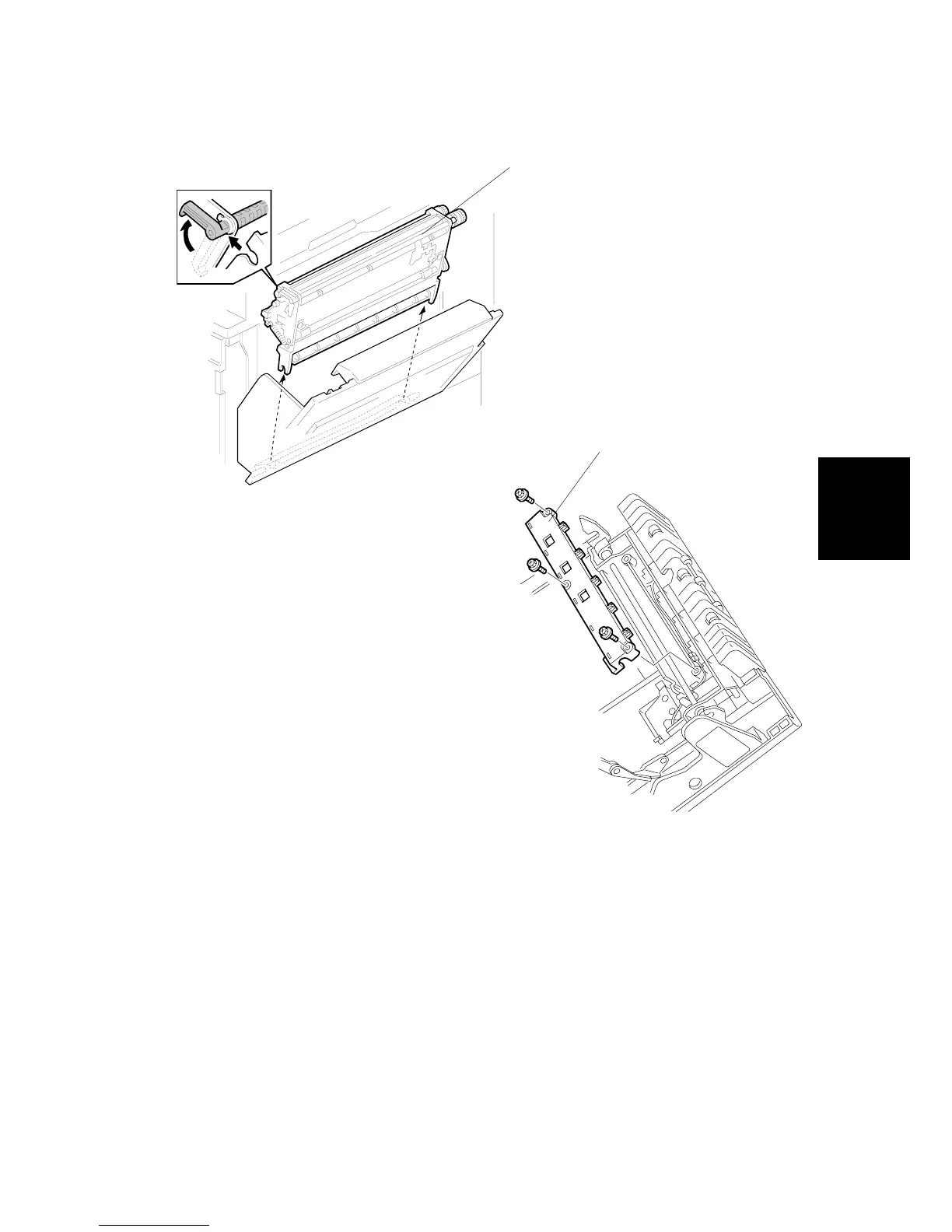

1. Open the duplex unit and right door.
2. Release the transfer unit [A] and remove it.
3. Remove the shaft cover [B] ( x 3).
B079R909.WMF
B079R713.WMF
[A]
[B]
