FUSING UNIT
B079/B082 3-60 SM

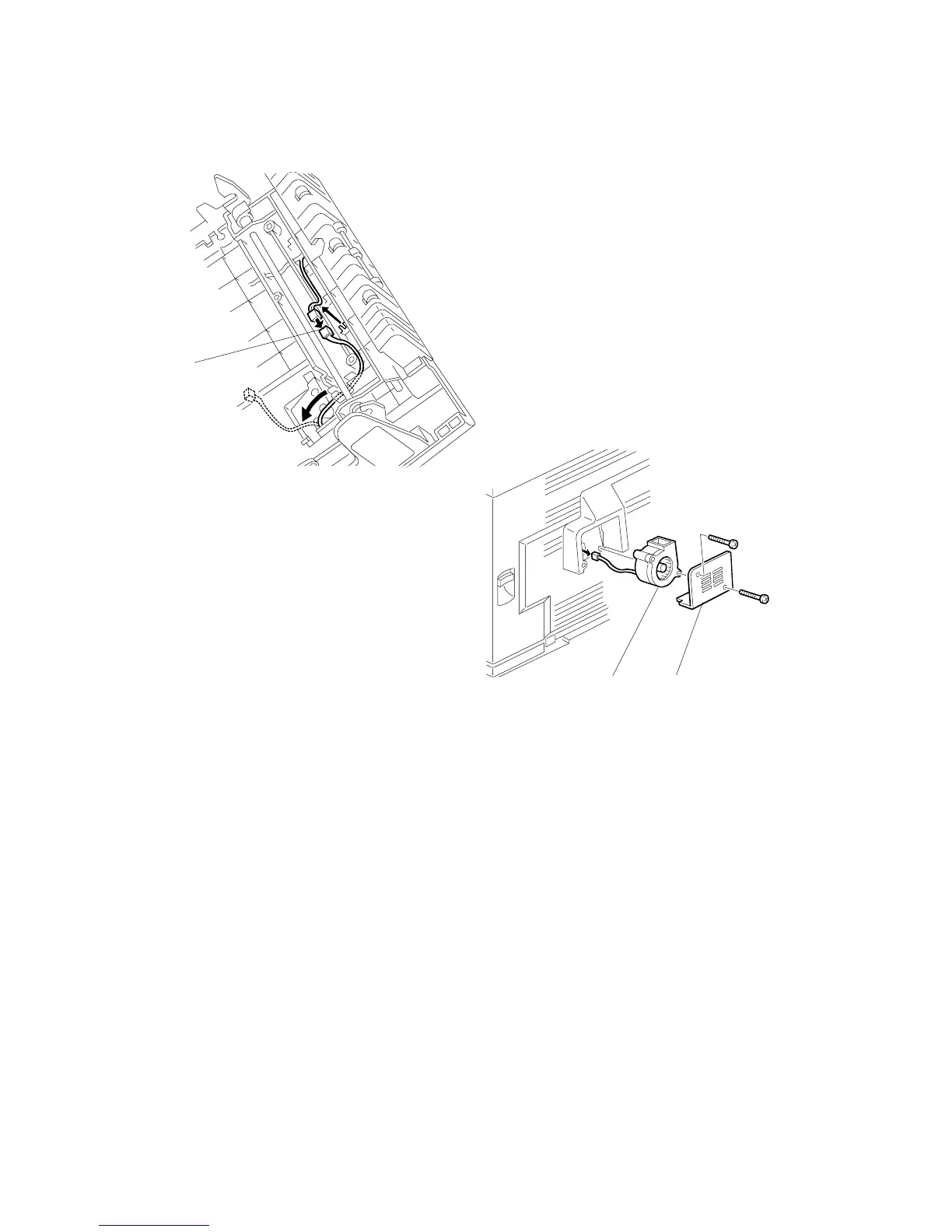

4. Separate the fan connectors [A] ( x 1).
NOTE: When re-connecting, be sure the thread the connector correctly
between the gaps.
5. Close the right door.
6. Use a short screwdriver to remove the fan plate [B] ( x 2).
7. Pull the fan [C] out of the machine.
B079R714.WMF
B079R715.WMF
[A]
[B]
[C]
