1.10.3 ARDF SKEW ADJUSTMENT
1. Remove the tape [A] covering the elliptical hole.
2. Remove right screw [B] and install it into the elliptical hole [C].
3. Move the right side of the ARDF forward or back to adjust the position then
tighten the screw.

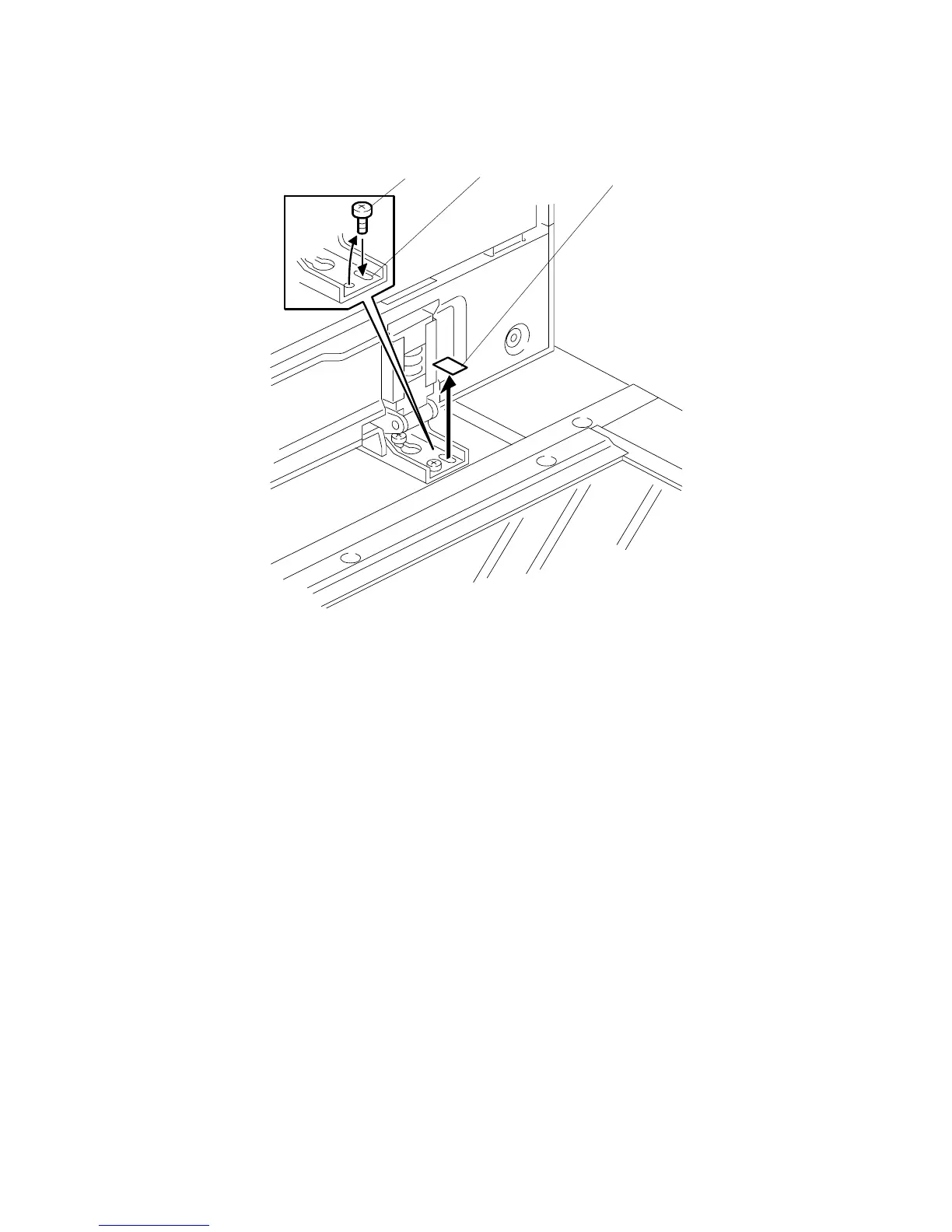

B079R724.WMFF
[A]
[B]
[C]
