Ricoh B079 - 1 St and 2 Nd Booklet Unit Gates

REMOVAL
B546 38 SM
3.1.19 1ST AND 2ND BOOKLET UNIT GATES

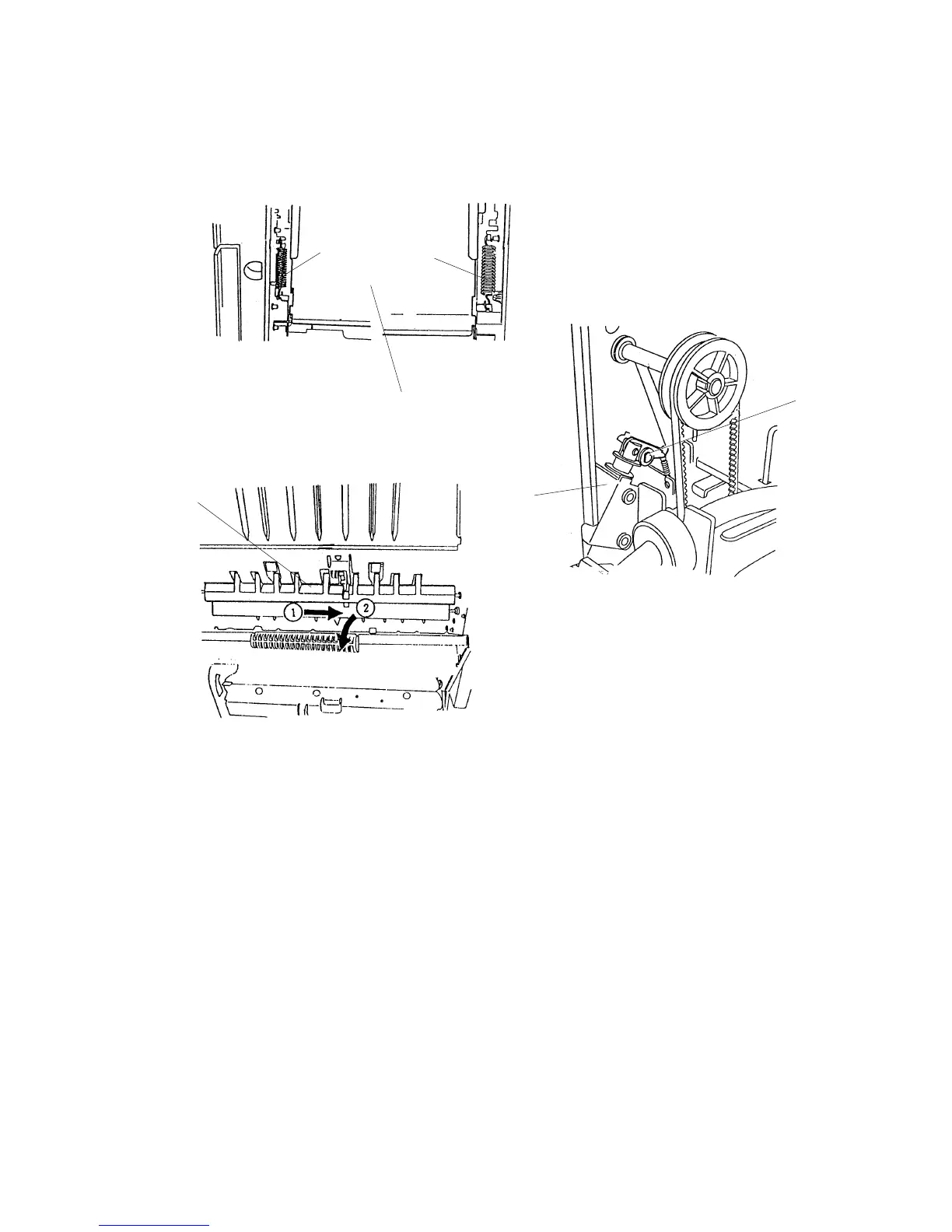

1. Remove the upper and lower rear covers.
2. Release the two tension springs [A] of the booklet entrance guide [B].
3. Remove the booklet unit gate solenoids [C] ( x 1, 1 spring each).
4. Pull out the link of the solenoid [D].
5. Remove the booklet unit gates [E].
B546R572.PCX
B546R573.PCX
B546R574.PCX
[A]
[B]
[A]
[C]
[D]
[E]
