Ricoh B079 - 1-Bin Tray Installation Procedure

Installation
1-BIN TRAY UNIT INSTALLATION (B544)
SM 1-27 B079/B082
1.6.2 1-BIN TRAY INSTALLATION PROCEDURE
CAUTION
Unplug the main machine power cord before starting the following
procedure.
1. Remove Scanner Unit
NOTE: If the ARDF is installed, remove the ARDF before removing the
scanner unit.

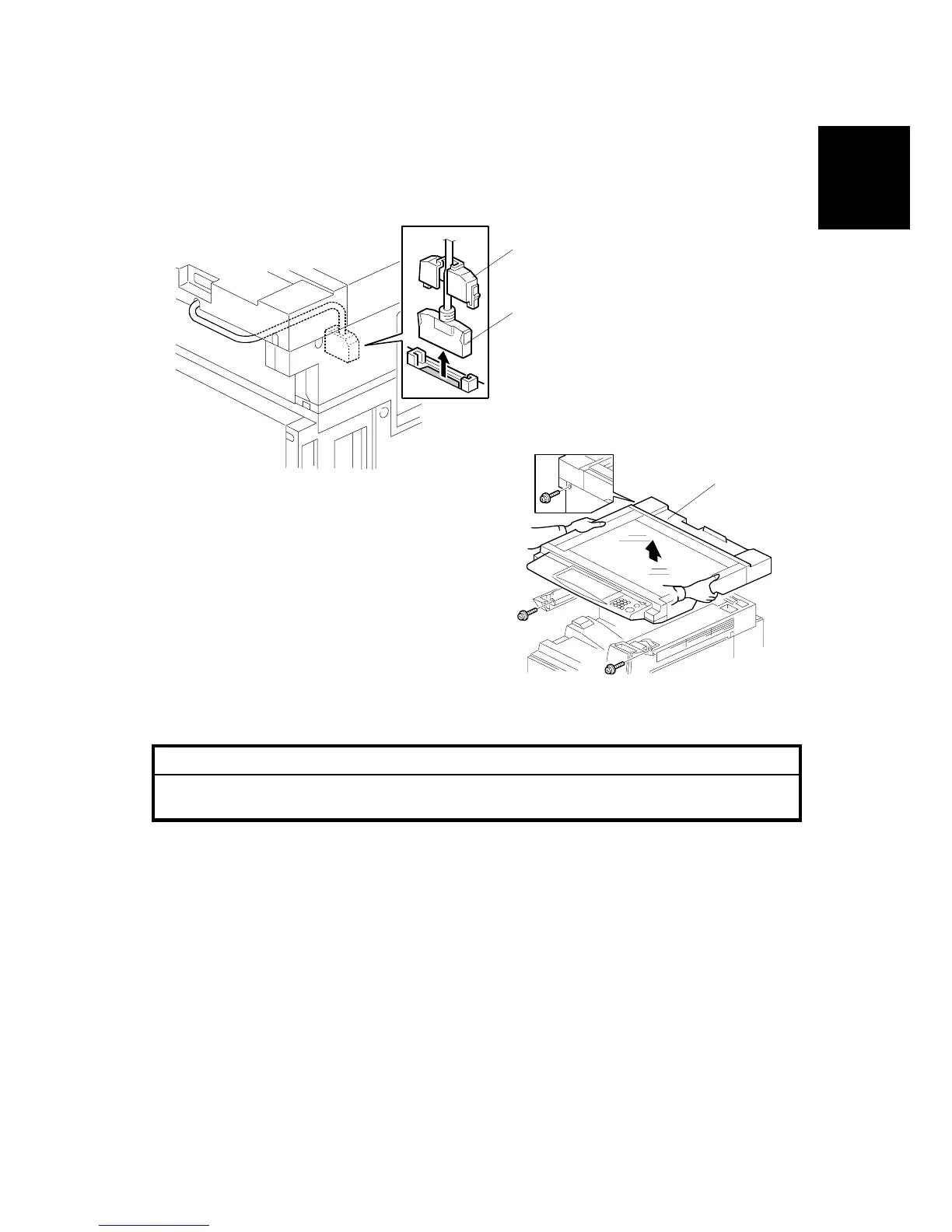

1) Remove the connector cover [A].
2) Disconnect the scanner cable [B].
3) Remove the scanner unit [C] ( x 3).
B544I114.WMFF
B544I113.WMF
[C]
[A]
[B]
