DUPLEX UNIT
SM 3-73 B079/B082
3.17.3 DUPLEX EXIT SENSOR REPLACEMENT
1. Duplex unit (!3.4)
2. Sensor bracket [A] ( x1)
3. Exit sensor [B] ( x1)

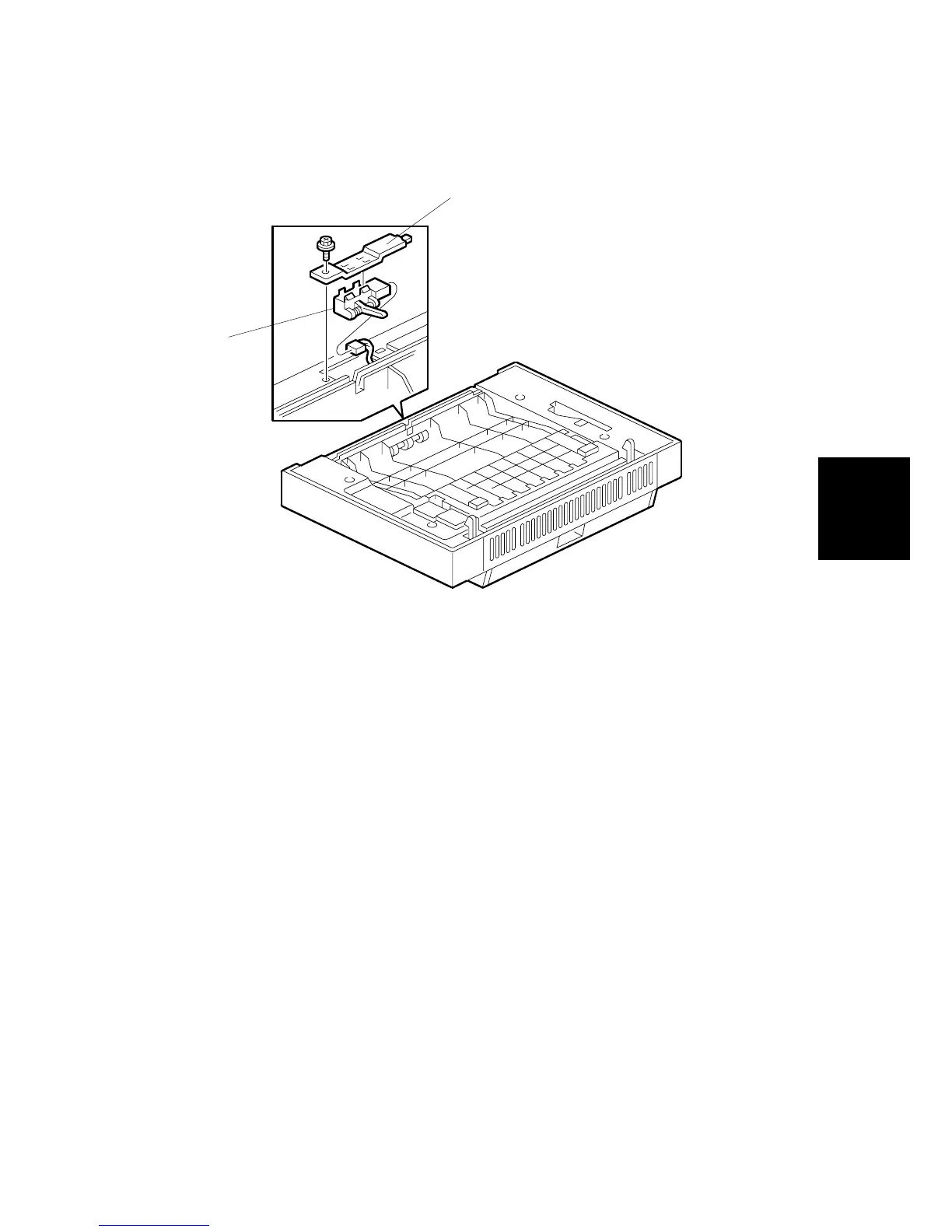

B004R103.WMF
[A]
[B]
