Ricoh B079 - Drum Cleaning Blade 1

Replacement
Adjustment
PHOTOCONDUCTOR UNIT (PCU)
SM 3-33 B079/B082
3.11.6 DRUM CLEANING BLADE 1
1. Remove the drum. (! 3.11.2)
2. Remove the charge roller and cleaning roller. (! 3.11.4)
3. Remove the movable cleaning blade. (! 3.11.5)

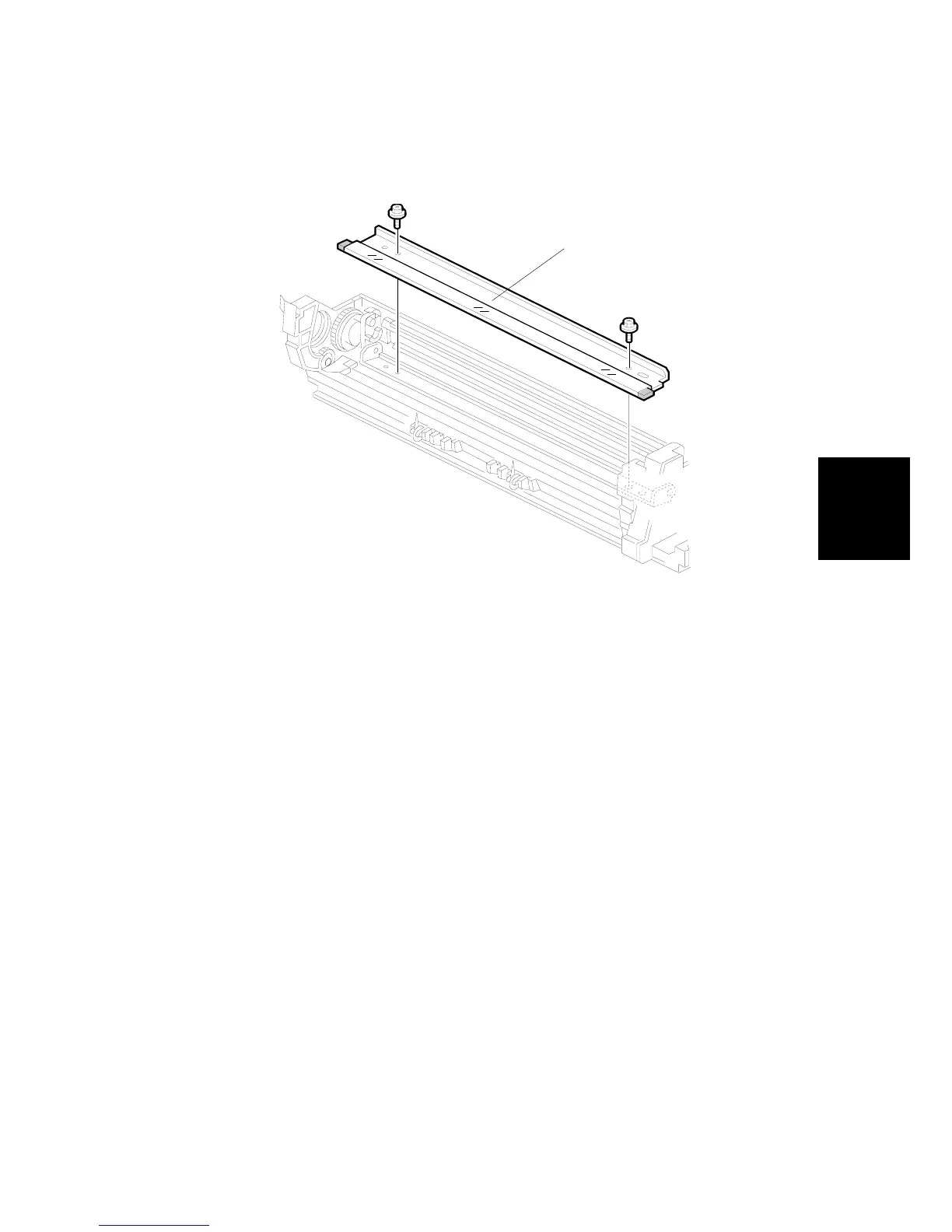

4. Remove the stationary drum cleaning blade [A] ( x 2)
CAUTION: After re-assembly make sure that the front spring of the movable
cleaning blade is re-attached to the #, $ position. (! 3.11.2)
B079R908.WMF
[A]
