Ricoh B079 - Page 126

SCANNER UNIT
B079/B082 3-18 SM

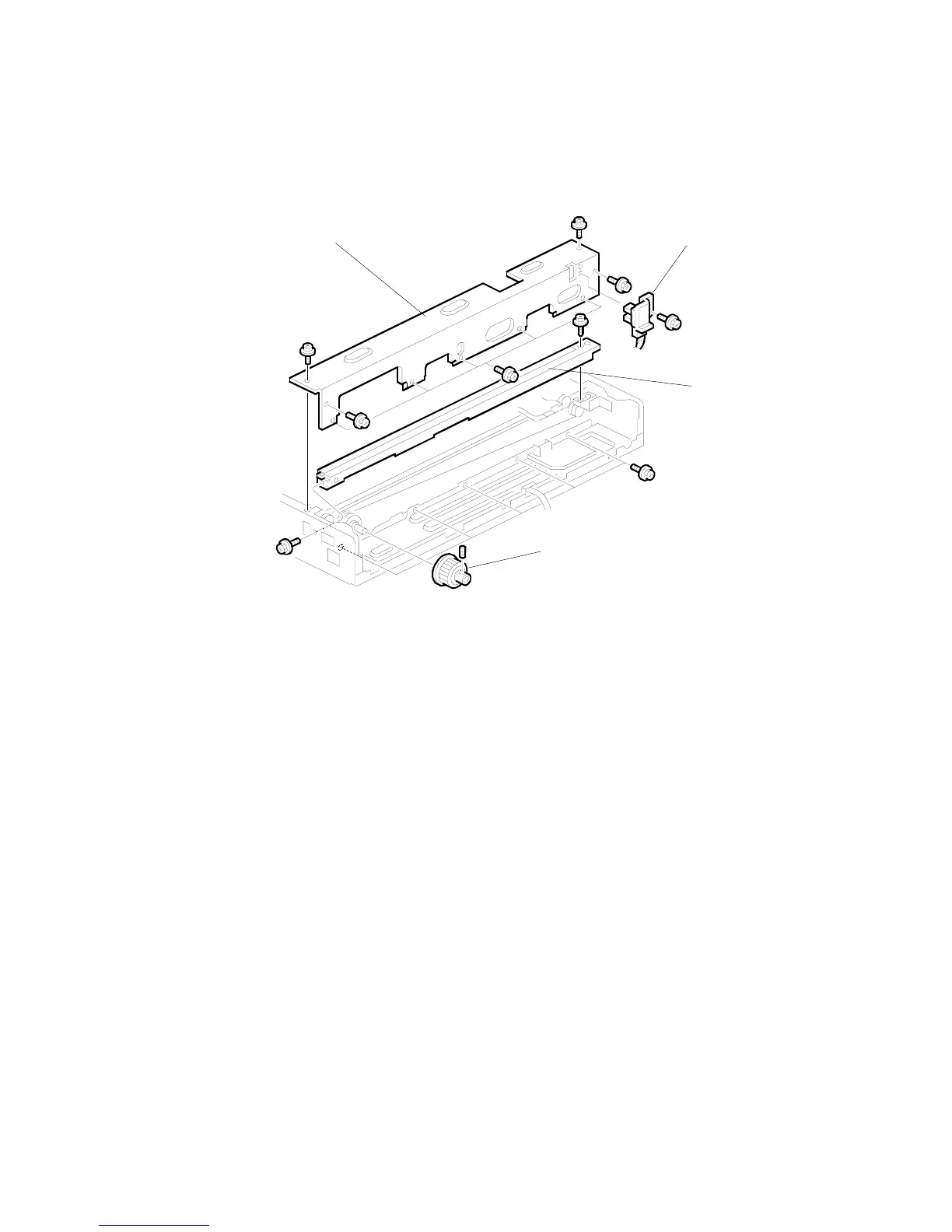

Rear wire:
1. Scanner HP sensor bracket [A] ( x1)
2. Scanner motor (!3.9.8)
3. Rear bracket [B] ( x9)
4. Rear scanner rail [C] ( x2)
5. Scanner drive pulley [D] ( x1)
B004R961.WMF
[C]
[D]
[B]
[A]
