FUSING UNIT
SM 3-55 B079/B082
– Right side –

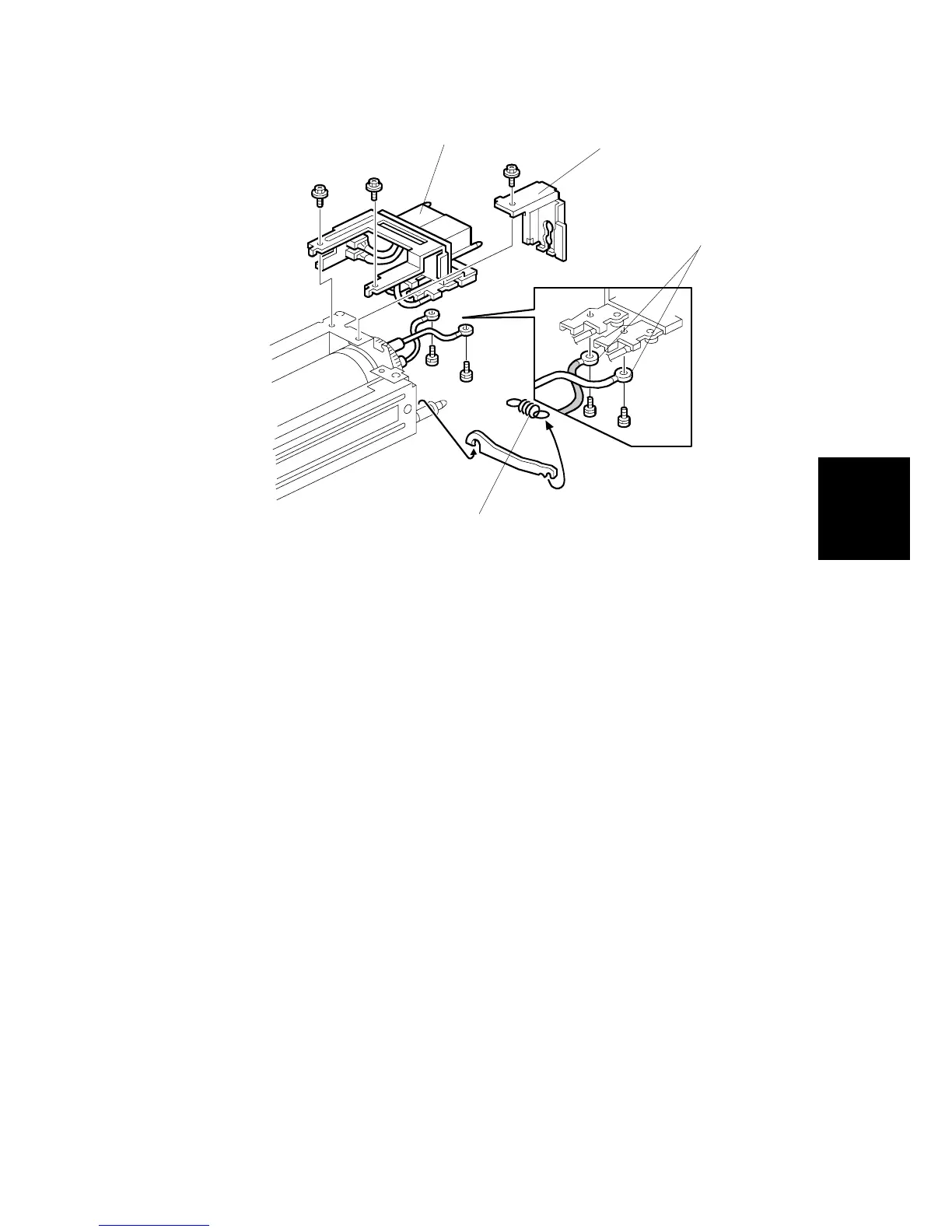

1. Two terminals [A] ( x2)
2. Spring [B]
3. Connector bracket [C] ( x2)
4. Bracket [D] ( x2)
NOTE: To avoid breaking the fusing lamps, handle them with care. Avoid
touching the lamps with your fingers. Note the top/bottom positioning of
the fusing lamps as you remove them. The sizes of the holes in the
holder match the sizes of the ends of the 650 W lamp (red) and 550 W
lamp (brown).
5. Remove both fusing lamps.
