B079/B082 3-78 SM
3.19.2 IOB

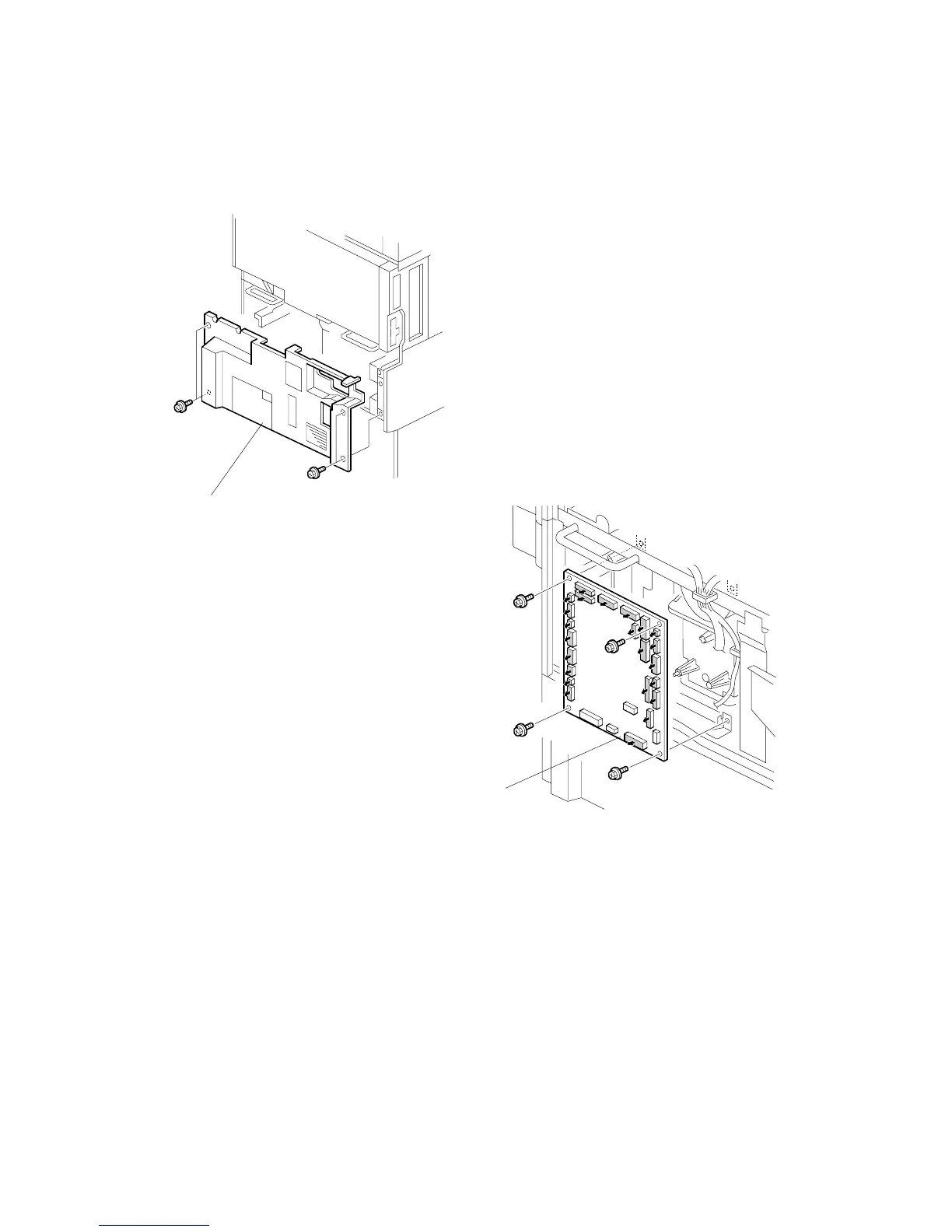

1. Remove the rear lower cover [A] ( x 4).
2. Remove the IOB [B] ( All,  x 4, Ribbon cable x 1).
3. The IOB is identical for the B079/B082. However, the DIP switches are set
differently for each machine. Check the DIP switches then adjust settings as
required. (See next page.)
B079R911.WMF
B079R720.WMF
[A]
[B]
