1-BIN TRAY UNIT INSTALLATION (B544)
B079/B082 1-30 SM

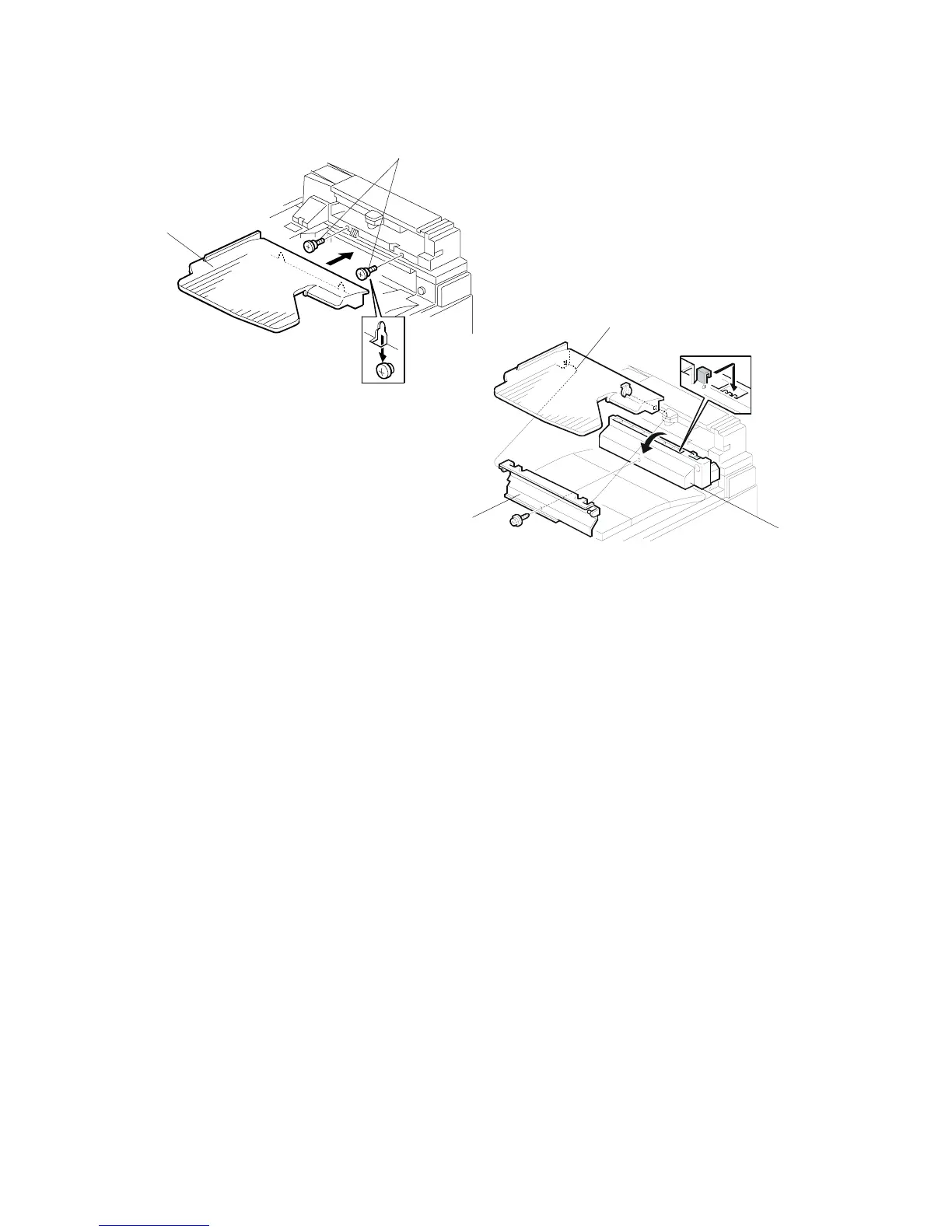

15. Attach the copy tray
Bridge Unit (B538) has not been installed:
1) Secure [A] (stepped  x 2) into the side of the 1-bin tray housing.
2) Attach the copy tray [B] to the stepped screws.
Bridge Unit (B538) has been installed
1) Open the cover of the bridge unit [C].
2) First, remove the copy tray bracket [D] ( x 1).
3) Install the copy tray bracket ( x 1: tapping screw).
4) Re-install the copy tray [E] ( x 1).
B544I493.WMF
B544I501.WMF
[A]
[B]
[C]
[D]
[E]
