Installation
ANTI-CONDENSATION HEATER
SM 1-67 B079/B082

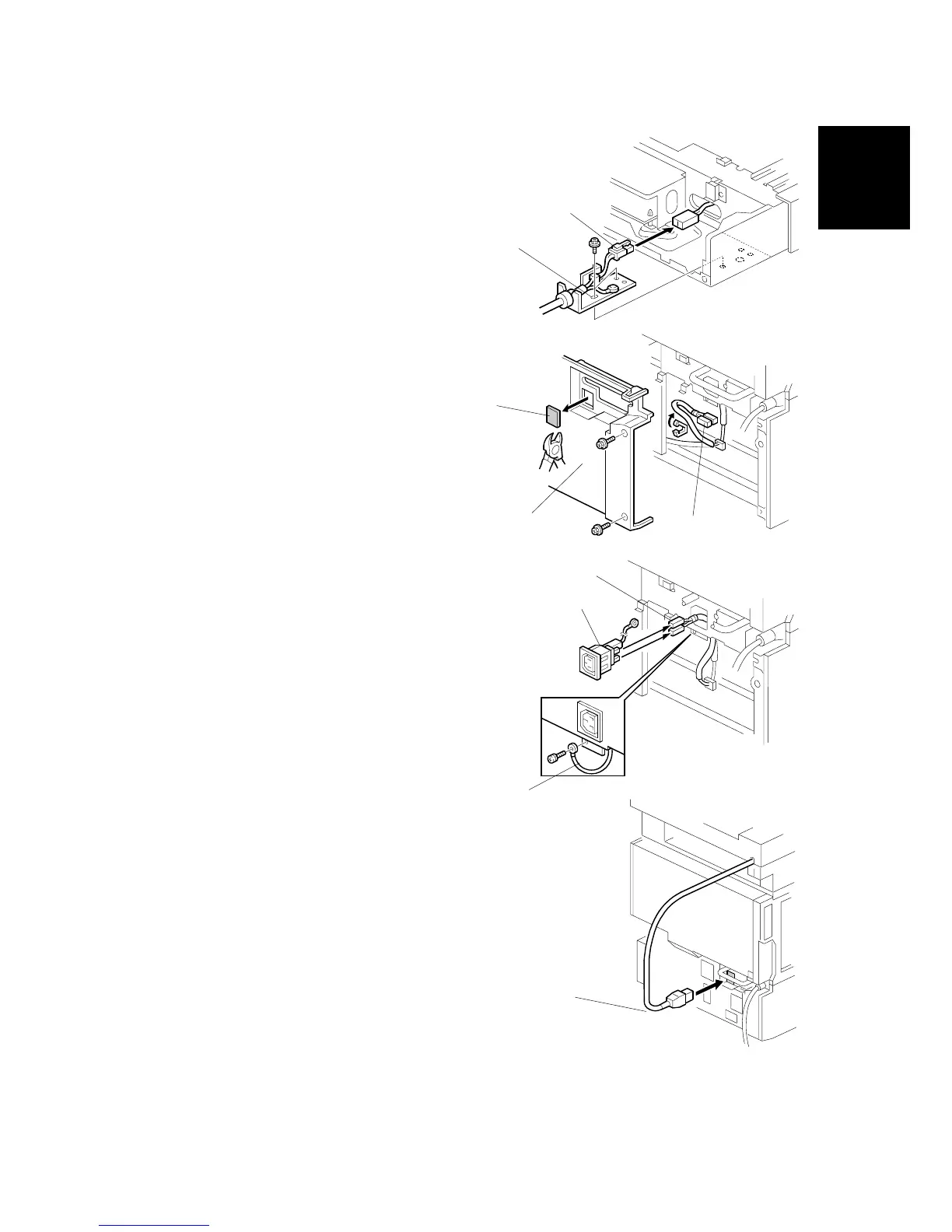

8. Install the ac harness assembly [G] ( x2,
M4x6) and connect the connector [H].
9. Remove the rear lower cover [I] ( x4).
10. Remove knockout [J].
11. Pull out ac harness [K].
12. Connect the ac harness [L] to the ac outlet
[M].
NOTE: Do not remove the ground wire
from the ac outlet.
13. Install the ac outlet.
14. Install the ground wire [N] ( x1, M4x6).
15. Re-install the rear cover, rear lower cover.
16. Connect the harness [O].
