Internal starts triggered by execute_list or
execute_at_pointer are not passed on.
External Starts triggered by simulate_ext_start or
simulate_ext_start_ctrl are passed on, see also
Chapter 6.6.3 ”Master/Slave Operation”, page 124.
get_startstop_info queries the current start status
(that is, whether one of the input ports is set to LOW)
(2) and whether a list has successfully started since
the last query.
bounce_supp enables debouncing of start signals
received at the /START, /START2 or /Slave-START
input ports (4). Start signals occurring within the
defined debouncing time after a successful start
signal are thereby suppressed. get_marking_info
queries whether a start signal has been suppressed
(4).
simulate_ext_start_ctrl can be used to start by
control command a synchronous start of
master/slave-synchronized boards.
The list command simulate_ext_start can be used to
trigger further starts at defined intervals after the
successful one-time External Start (see below).
69

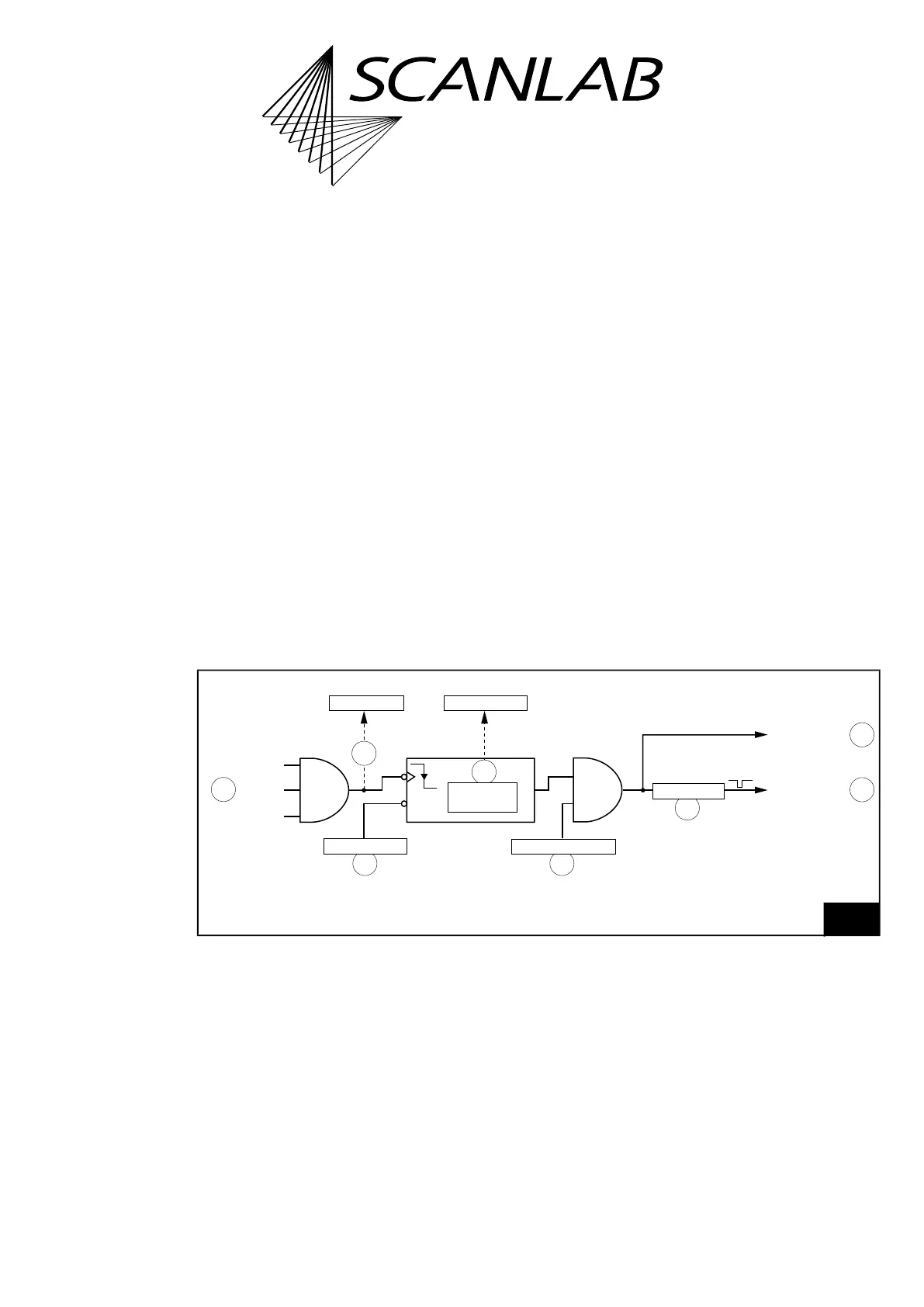

External Start. See text for description.
