Scanlab RTC6 PCIe Board - Slot Cover with 9-Pin D-SUB Connector for 2. SCANHEAD Socket Connector; Slot Cover with 15-Pin D-SUB Connector for MARKING on the FLY Socket Connector

RTC6 boards
Doc. Rev. 1.0.21 en-US
2 Product Overview
45
innovators for industry
2.8.4 Slot Cover with 9-pin D-SUB
Connector for “2. SCANHEAD”
Socket Connector
For connecting a second scan head or a z axis to the
2. SCANHEAD Socket Connector a slot cover is
available, see Figure 2:
• #115132
Its 9-pin D-SUB connector has the same pin-out as the
SCANHEAD Connector, see Figure 10.
See also Section ”Second Scan Head Slot Cover
(Accessory)”, page 68.
2.8.5 Slot Cover with 15-pin D-SUB
Connector for
“MARKING ON THE FLY”
Socket Connector
For using the input ports and signals of the
MARKING ON THE FLY Socket Connector, a slot cover
is available, see Figure 3:
• 109272
The pin-out of its 15-pin D-SUB connector (female) is
shown in Figure 26.
See also Section ”MARKING ON THE FLY Slot Cover
(Accessory)”, page 83.

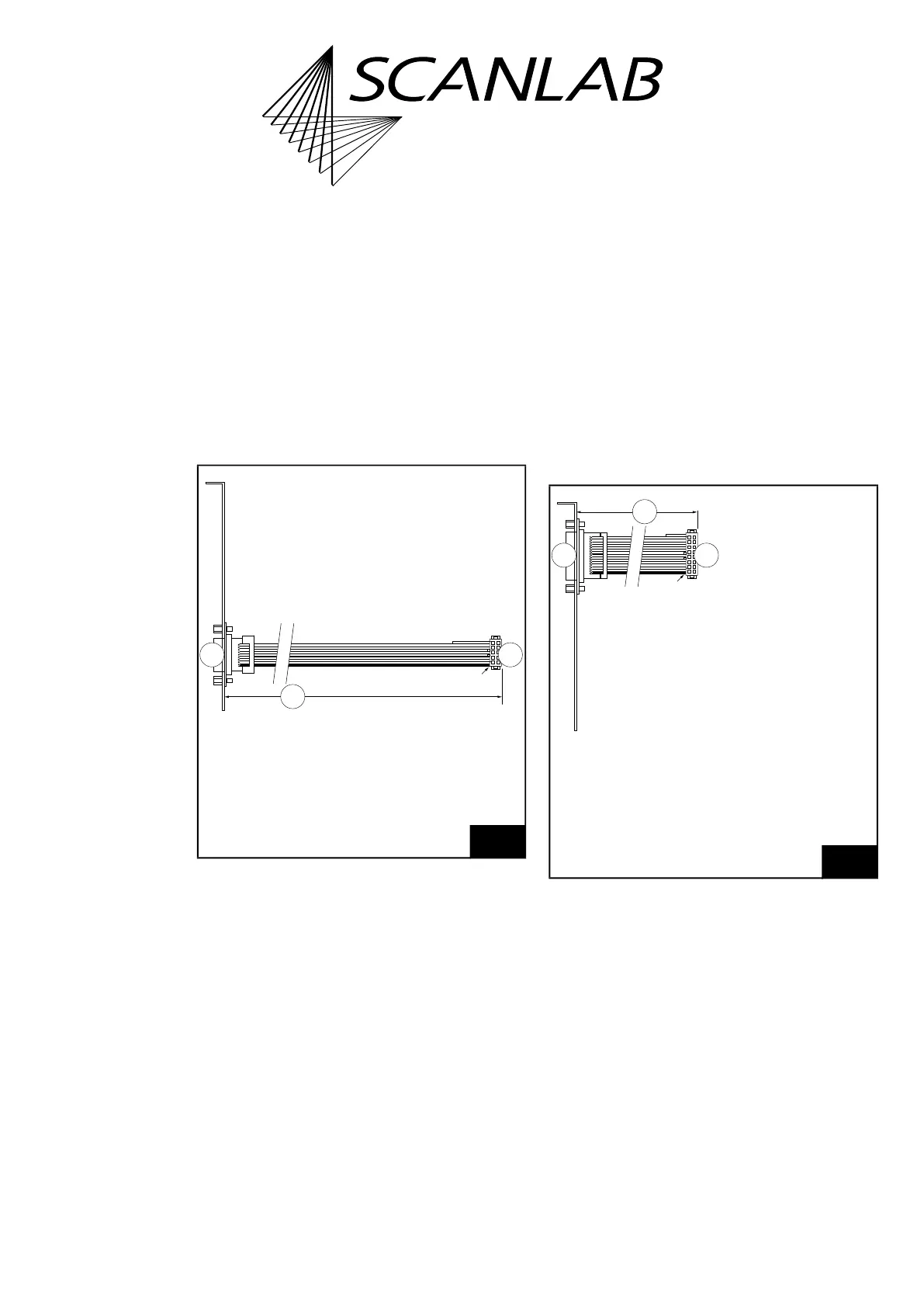

2
Second Scan Head Slot Cover (Accessory) #115132.
Legend
1. 9-pin D-SUB connector (female).
pin-out as Figure 10.
2. l = 225 mm.
3. To 2. SCANHEAD Socket Connector.
3
2
1
1
3
MARKING ON THE FLY Slot Cover (Accessory) 109272.
Legend
1. 15-pin D-SUB connector (female).
pin-out as Figure 26.
2. l = 105 mm.
3. To MARKING ON THE FLY Socket Connector.
3
2
1
1
