4 RTC6 PCIe Board – Layout and Interfaces
75
innovators for industry
18

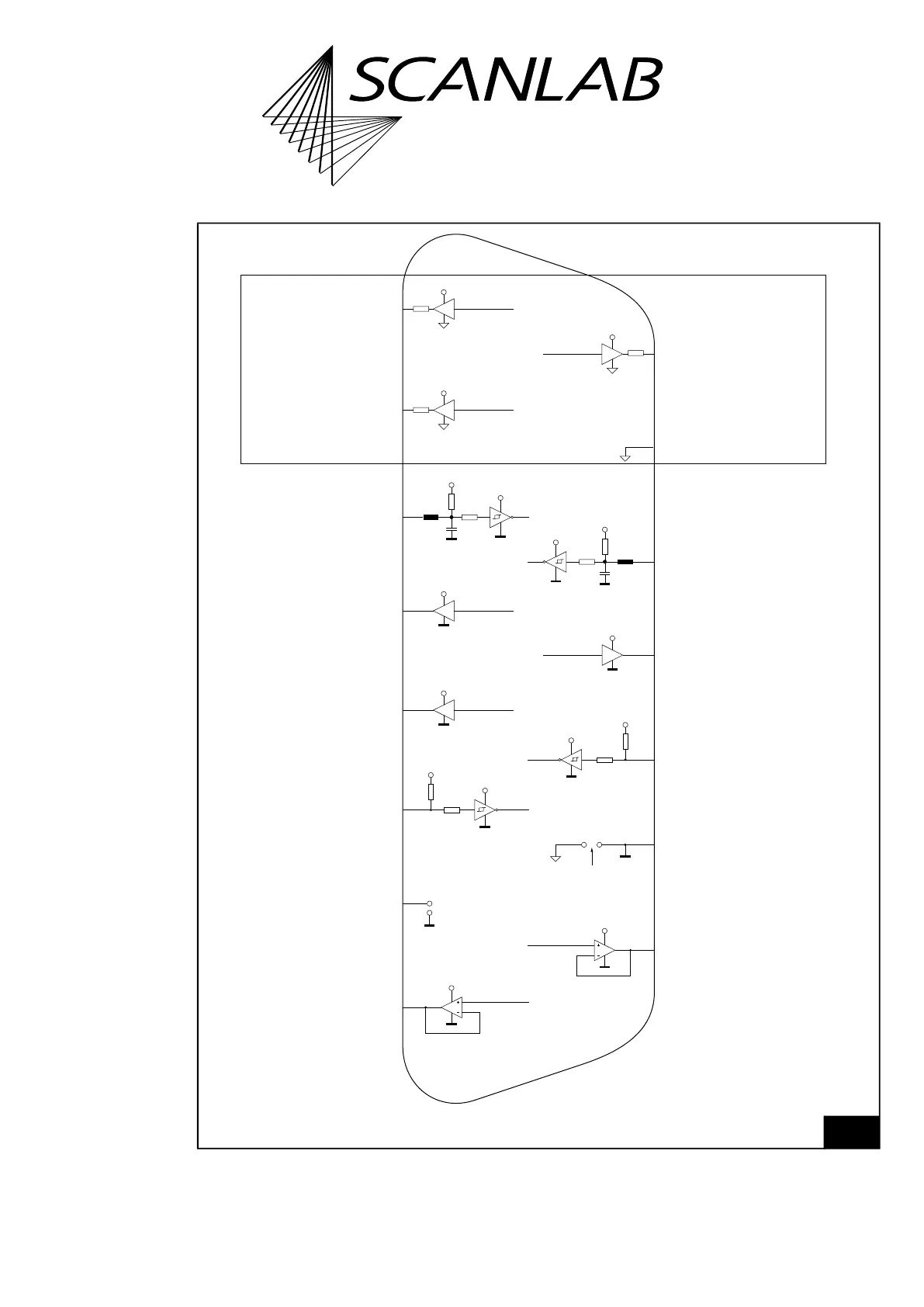

LASER Connector, see also Figure 17: input/output wiring.
See also Section ”Option “DC/DC Converter””, page 38.
TLE2142
+12V
74HC14
4k7
SN74LVC3G34
+5V
74HC14
4k7
SN74LVC1G126
+5V
TLE2142
+12V
+5V
74HC14
4k7
SN74LVC3G34
+5V
SN74LVC3G34
+5V
74HC14
4k7
SN74LVC1G126
+5V
SN74LVC1G126
+5V
10
10
10
(15) ANALOG OUT2
(14) GND
(13) DIGITAL IN1
(12) DIGITAL OUT1
(11) /STOP
(10) GND2
(09) LASER2
ANALOG OUT1 (08)
+5 V (07)
DIGITAL IN2 (06)
DIGITAL OUT2 (05)
BUSY OUT (04)
/START (03)
LASERON (02)
LASER1 (01)
On RTC6 boards without
“DC/DC” option
this jumper is closed.
On RTC6 boards without
“DC/DC” option the signals are
not galvanically decoupled
and GND2 = GND.
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
