MAINTENANCE & SUPPLIES, Monthly, Clean SRV
5-22 Sysmex SF-3000 Operator's Manual -- Revised September 1995
(5) Gently pull down the Manual Rinse Mechanism as shown in Figure 5-5-12.
CAUTION: Pull down the Rinse Mechanism to the lowest position to prevent the
Manual Aspiration Pipette from bending.
(6) Place a tissue or cloth under the SRV to absorb any reagent.
(7) Turn the SRV thumbscrew counterclockwise to remove it (see Figure 5-5-13).
Manual Rinse Cup
Manual Aspiration Pipette
Loosen
SRV Thumbscrew

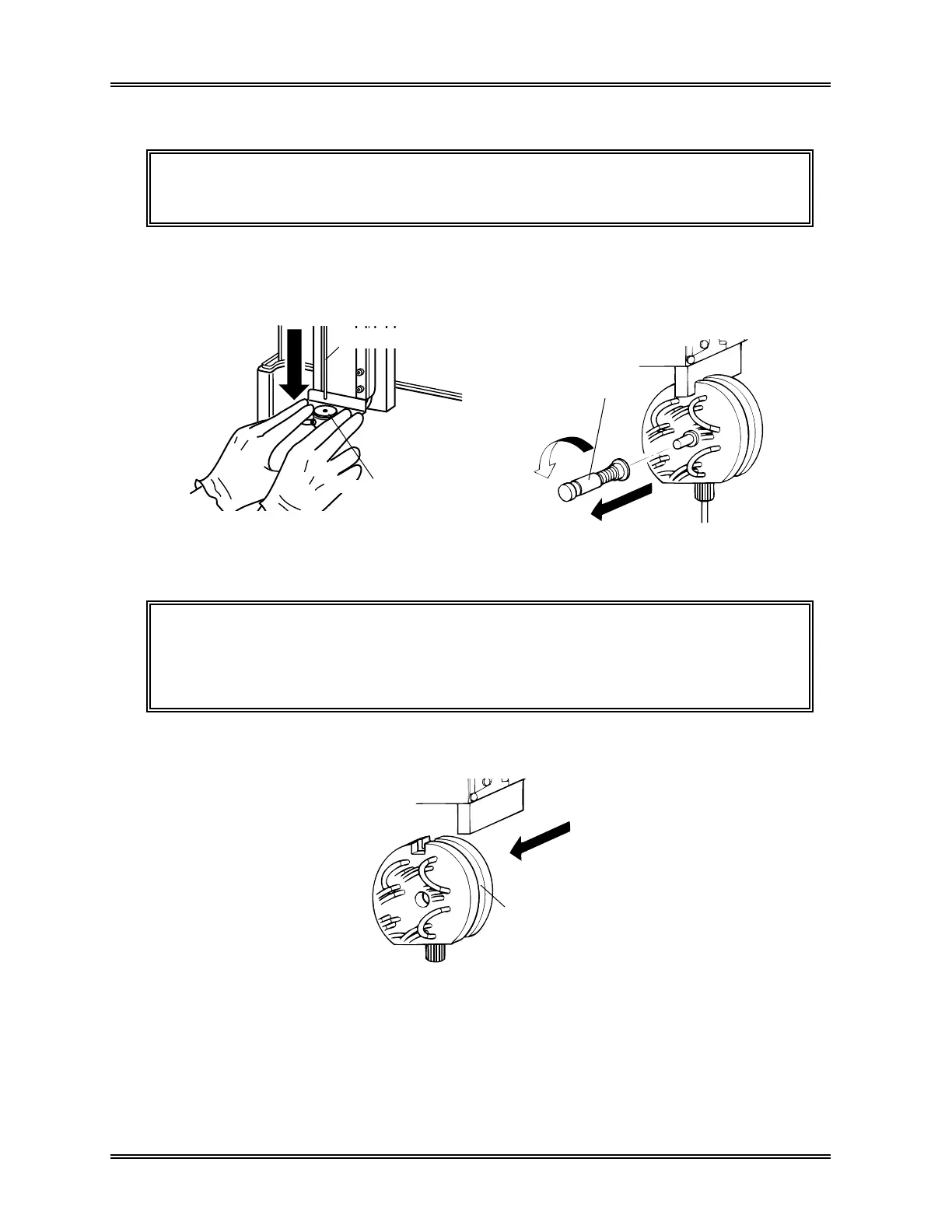

Figure 5-5-12: Manual Rinse Mechanism Figure 5-5-13: Remove Thumbscrew
CAUTION: • Do not pull the valve sections out too far, the tubes connected to
the rear fixed valve might become damaged or disconnected.
• Take care not to bend the Manual Aspiration Pipette when pulling
out the valve.
(8) Pull the valve sections gently toward you. See Figure 5-5-14.
SRV Set
Figure 5-5-14: Remove SRV Set
(View from the Instrument Left Side)
