SYSMEX SF-3000 User Manual

MAINTENANCE & SUPPLIES, Replacements, Piercer (Auto Sampler)
5-52 Sysmex SF-3000 Operator's Manual -- Revised September 1995

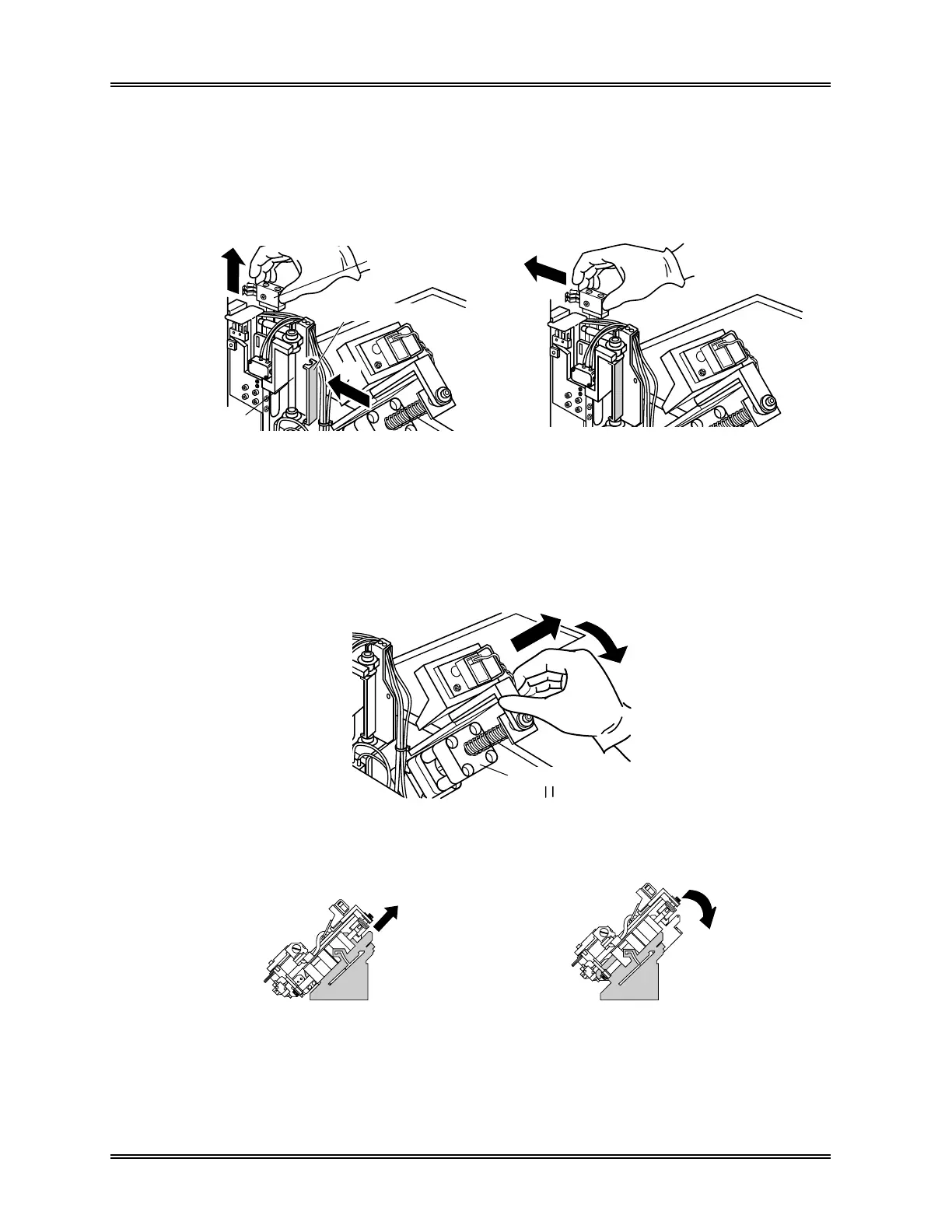

(4) Pull up the mixer mechanism (Arrow ① in Figure 5-8-7). Install the holding metal
for piercer replacement on the cylinder rod as shown in Figure 5-8-7 (Arrow ➁).
Make sure the mixer mechanism is secured.
(5) Push the mixer mechanism away from you. See Figure 5-8-8.
Up-Down
Air Cylinder
①
➁
Holding Metal
Mixer Mechanism
Figure 5-8-7: Set the Holding Metal Figure 5-8-8: Push Mixer Mechanism
(6) Pull the piercing unit toward you (Arrow ① in Figures below), then lower the unit
to lay down (Arrow ➁).
Piercing Unit
➁
➁➁
①
Figure 5-8-9: Pull the Piercing Unit
①
➁
Figure 5-8-10: Pull the Piercing Unit Figure 5-8-11: Lower the Piercing Unit
(Cross Section View) (Cross Section View)
