MAINTENANCE & SUPPLIES, Replacements, Piercer (Auto Sampler)
Sysmex SF-3000 Operator's Manual -- Revised September 1995 5-53
(7) When the piercing unit is horizontal, slide the unit away from you and lock it in
place (Figure 5-8-12).

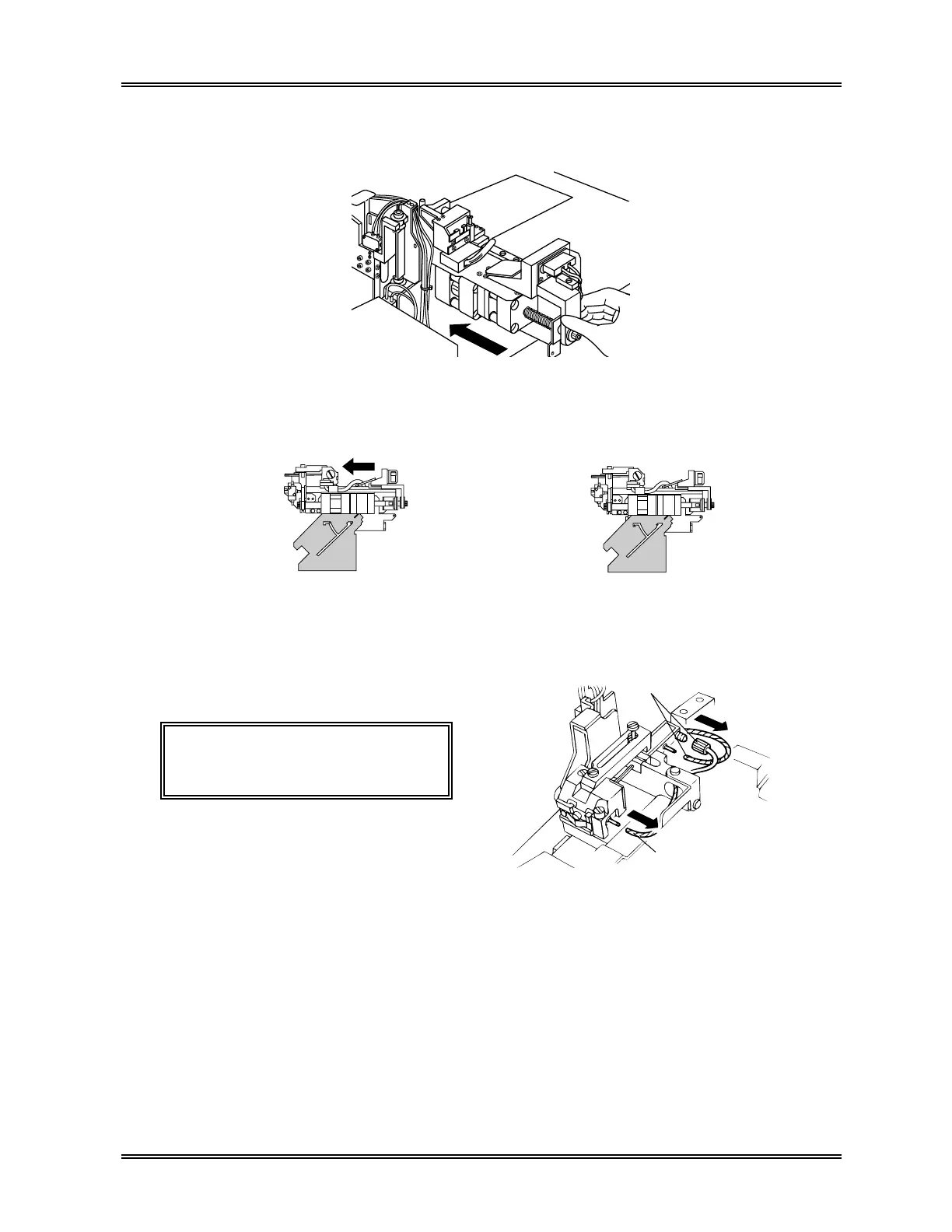

Figure 5-8-12: Slide the Unit to Lock
➂
Figure 5-8-13: Slide the unit to lock Figure 5-8-14: Unit has been locked
(Cross Section View) (Cross Section View)
(8) Disconnect the three tubes shown
in Figure 5-8-15.
C
AUTI
O
N: Do not cut or bend the
tubes.
Disconnect
Disconnect
Figure 5-8-15: Disconnect the Tubes
