Sysmex SF-3000 Operator's Manual -- Revised September 1995 5-59
(4) Disconnect the three tubes (①, ➁ and ➂) shown in Figure 5-8-26.
CAUTION: Do not clamp or bend the tubes.
1
2
3

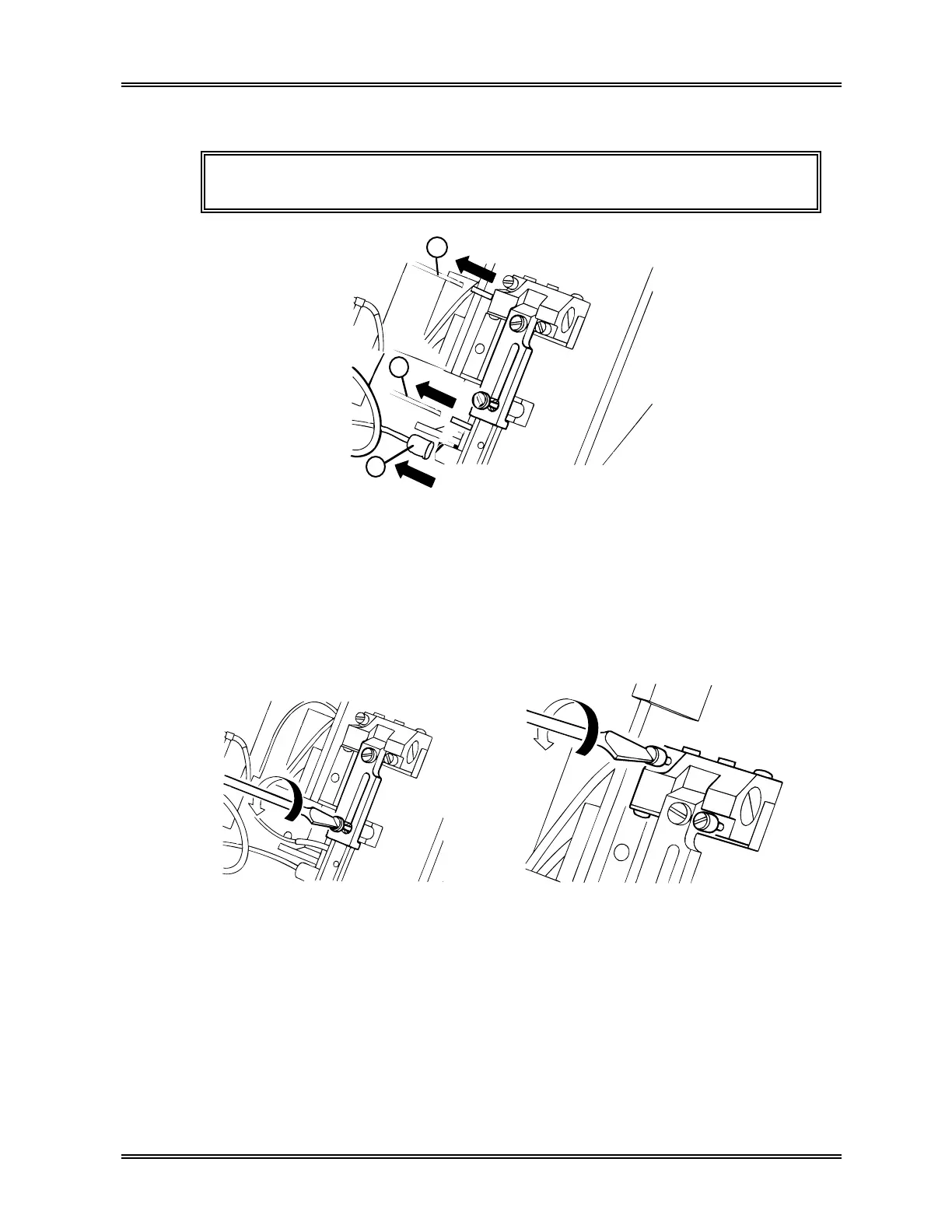

Figure 5-8-26: Disconnect the Tubes
(5) Unscrew the thumbscrew with a screwdriver (see Figure 5-8-27). If the
thumbscrew is fixed in the fixing plate, the piercer needle is locked and never
comes out.
(6) Loosen the two thumbscrews shown in Figure 5-8-28, and remove the piercer.
Figure 5-8-27: Lock the Piercer Figure 5-8-28: Loosen the Thumbscrews
