SYSMEX SF-3000 User Manual

MAINTENANCE & SUPPLIES, Replacements, Piercer (Manual CP Unit)
5-60 Sysmex SF-3000 Operator's Manual -- Revised September 1995
2 . Installation

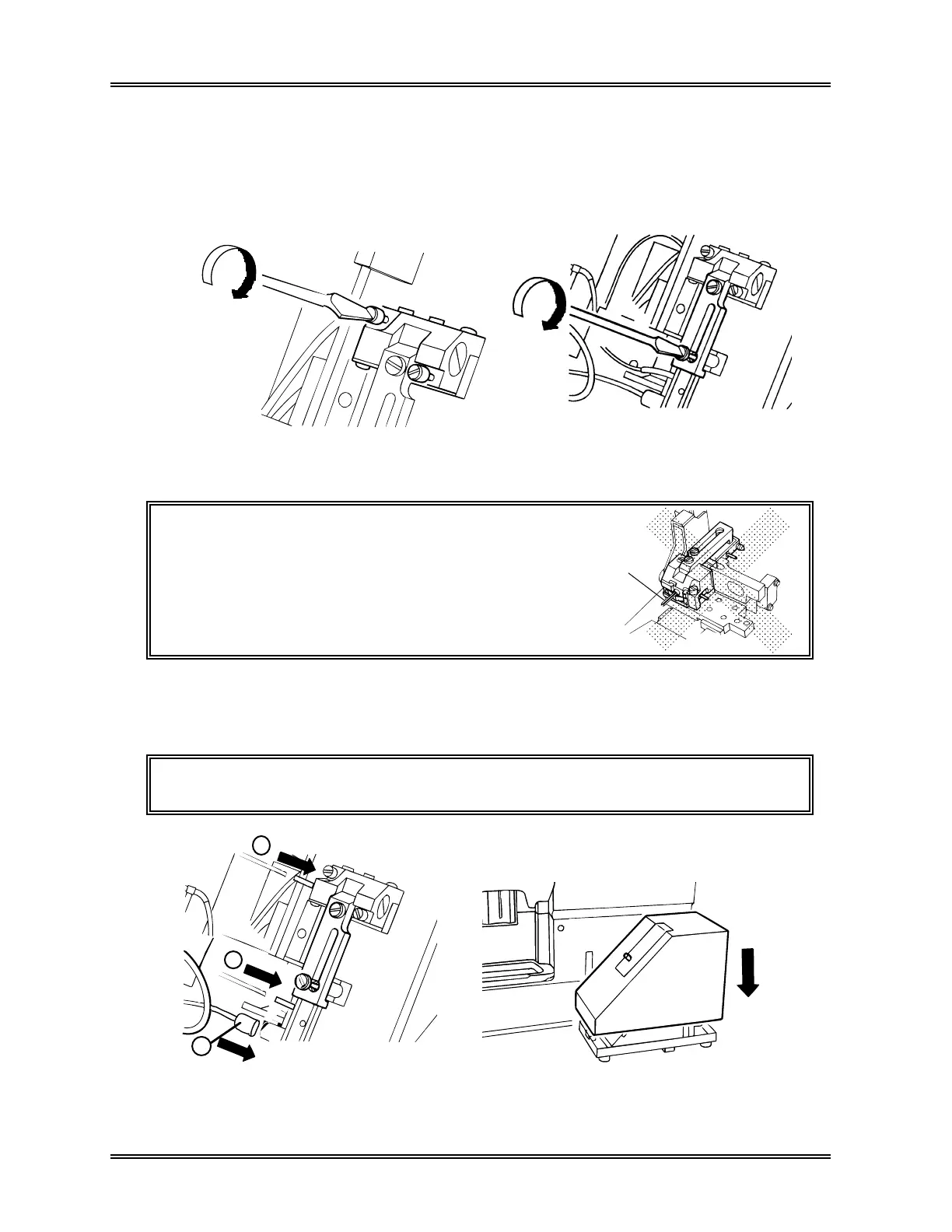

(1) Insert the new piercer, and retighten the thumbscrews (see Figure 5-8-29).
(2) Tighten the thumbscrew until the piercer needle becomes free (see Figure 5-8-30).
Figure 5-8-29: Tighten the Thumbscrews Figure 5-8-30: Release the Piercer
Needle
WARNING! After tightening the needle fixing
thumbscrew, the piercer needle
may be exposed.
Piercer Needle
(3) Reconnect the three tubes (①, ➁ and ➂) as shown in Figure 5-8-31.
(4) Reset the Manual CP cover.
CAUTION: Take care not to pinch or bend the tubing when replacing the cover.
1
2
3
Figure 5-8-31: Reconnect the Tubes Figure 5-8-32: Set the Unit Cover
