P1. WBC
This program displays the WBC data of the latest sample.
Manual Mode Next No.: 1234567890123
Sysmex
Read
y
DP:1234567890123
Sampler
XM HC GP DP SU
Service Data
N O. 1
1995/12/18 10:57
SAMPLING DATA-WBC
WBC/BASO DIFF
434
399
415
968
0
0
0
0
0
0
0
0
0
5
348
353
365
383
372
362
393
402
387
379
410
394
405
425
379
412
406
402
973
0
0
0
0
0
0
0
0
7958
SCATTERGRAM SENSITIVITY
WBC/BASO-X
WBC/BASO-Y
DIFF-X
DIFF-Y
GRAN-X
GRAN-Y
LYMPH/MONO-X
LYMPH/MONO-Y
44.2
94.7
177.5
176.4
177.4
177.2
44.3
94.6
WBC/BASO-X (W)
WBC/BASO-Y (W)
DIFF-X (W)
DIFF-Y (W)
GRAN-Y (W)
154.0
91.9
27.0
91.8
43.0
ANALYZED DATA
WBC/BASO-LYMPH/MONO#
WBC/BASO-GRAN#
WBC/BASO-LYMPH/MONO%
WBC/BASO-GRAN%
DIFF-WBC
45.0
76.8
73.0
124.4
122.2
Return
→←

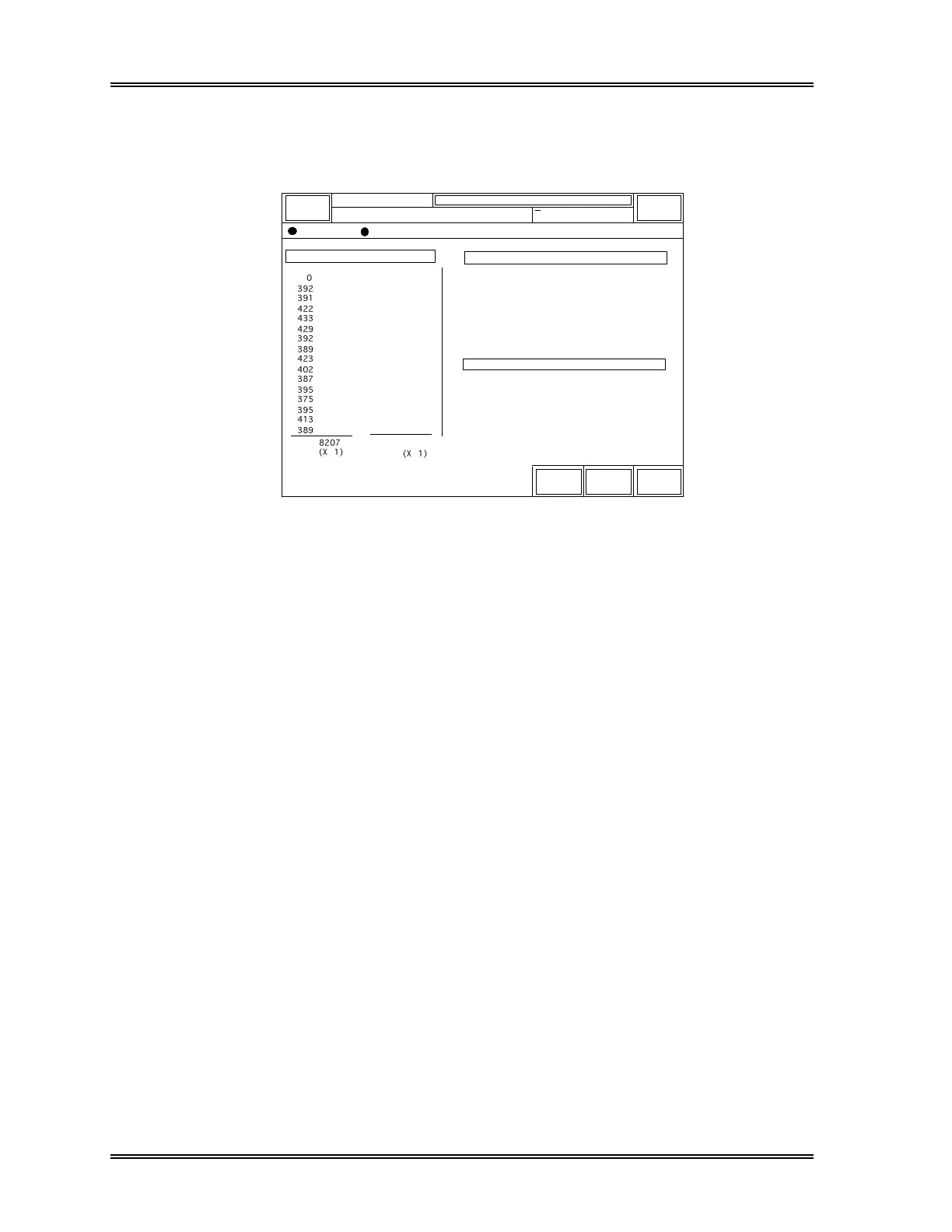

Figure 8-31: Service Data - WBC Screen
1) Sampling Data - WBC
In the WBC/BASO and DIFF columns, cell counts taken every 0.5 seconds are
displayed. These cell count displays are for monitoring the occurrence of
sudden noise. If the ratio of the difference between the maximum and
minimum cell count to the total sampling cell count is outside the specified
range, a "Sampling Error" message (analysis error) will be displayed. The
total cell counts displayed are limited by the display digit to 4-figures. Multiply
these values by the number in parentheses at the bottom of the column to obtain
the actual total cell count value.
2) Scattergram Sensitivity
WBC/BASO-X : Most frequently occurring value for the WBC/BASO
X-axis channel. (Unit: fL)
WBC/BASO-Y : Most frequently occurring value for the WBC/BASO
Y-axis channel. (Unit: fL)
DIFF-X : Most frequently occurring value for the DIFF X-axis
channel. (Unit: fL)
DIFF-Y : Most frequently occurring value for the DIFF Y-axis
channel. (Unit: fL)
GRAN-X : Most frequently occurring value for the GRAN area in
DIFF X-axis channel. (Unit: fL)
GRAN-Y : Most frequently occurring value for the GRAN area in
DIFF Y-axis channel. (Unit: fL)
LYMPH/MONO-X : Most frequently occurring value for the LYMPH/
MONO area in WBC/BASO X-axis channel. (Unit: fL)
LYMPH/MONO-Y : Most frequently occurring value for the LYMPH/
MONO area in WBC/BASO Y-axis channel. (Unit: fL)
