INSTALLATION, Manual CP Unit
Sysmex SF-3000 Operator's Manual -- Revised August 1998 B-19
(3) Attach the sampler mounting metals to the Main Unit chassis. See the figure
below.
NOTE: To install the sampler mounting metal to the Main Unit Chassis, lift the rail
and press it against the bottom surface of the Main Unit chassis.
M3 x 6
M3 x 10
Sampler Mounting Metal

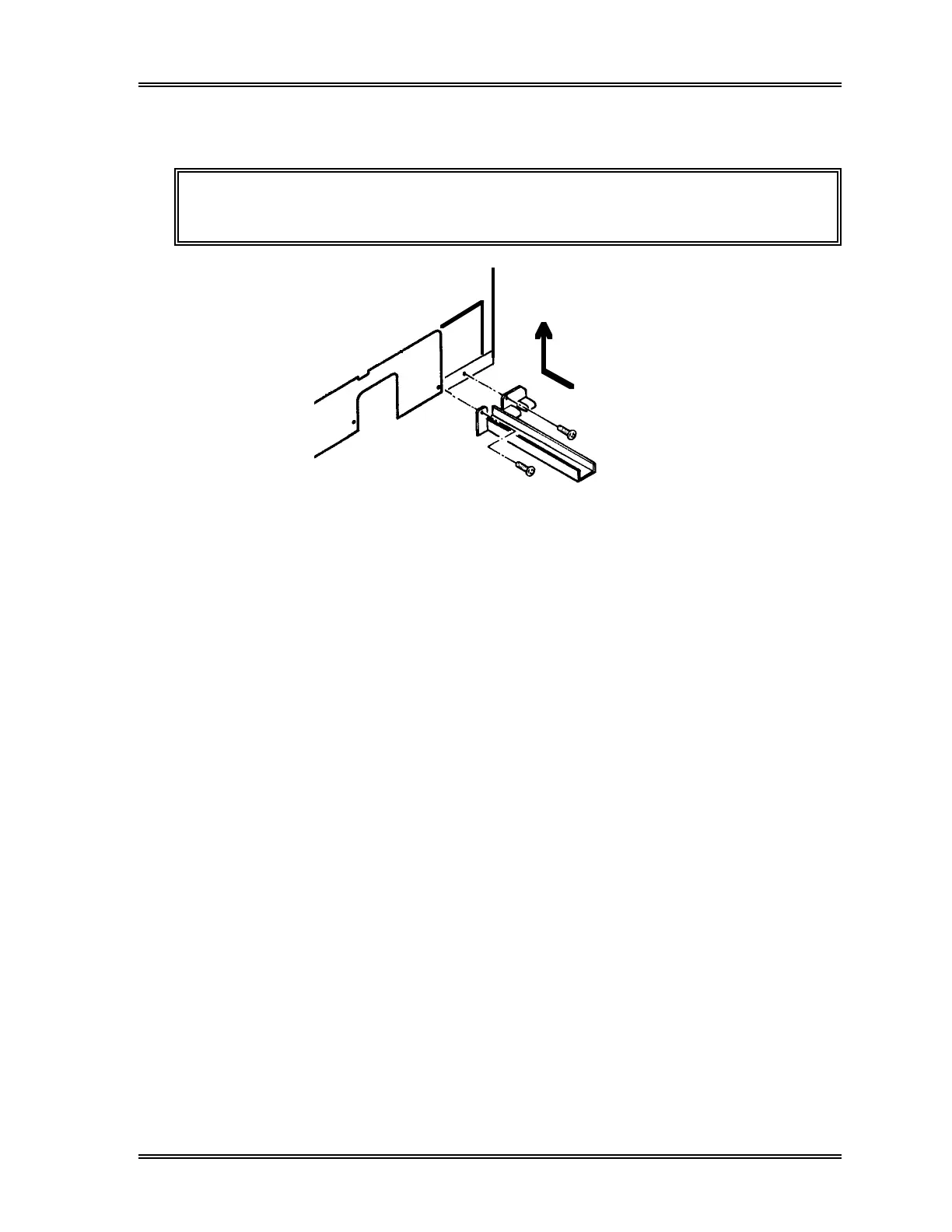

Figure B-26: Attach Sampler Mounting Metals
(4) Use a screwdriver to remove the dummy cover from the fluid connector.
(5) Insert the Manual CP unit halfway onto the mounting rail.
