SUPPLEMENT S2
Chapter 6 - Inspection
Page 11
2nd Edition – Rev 0
CHAPTER 6 - INSPECTION
RIGHT WING LEADING EDGE
The right wing leading edge is reinforced to enable its use as a support: an internal
reinforcement (Figure C-1) is provided creating an anchor to the fuselage using two
brackets to drop that follow the contour along across the board p/n 22-1-950-1/2
(Figure C-2).

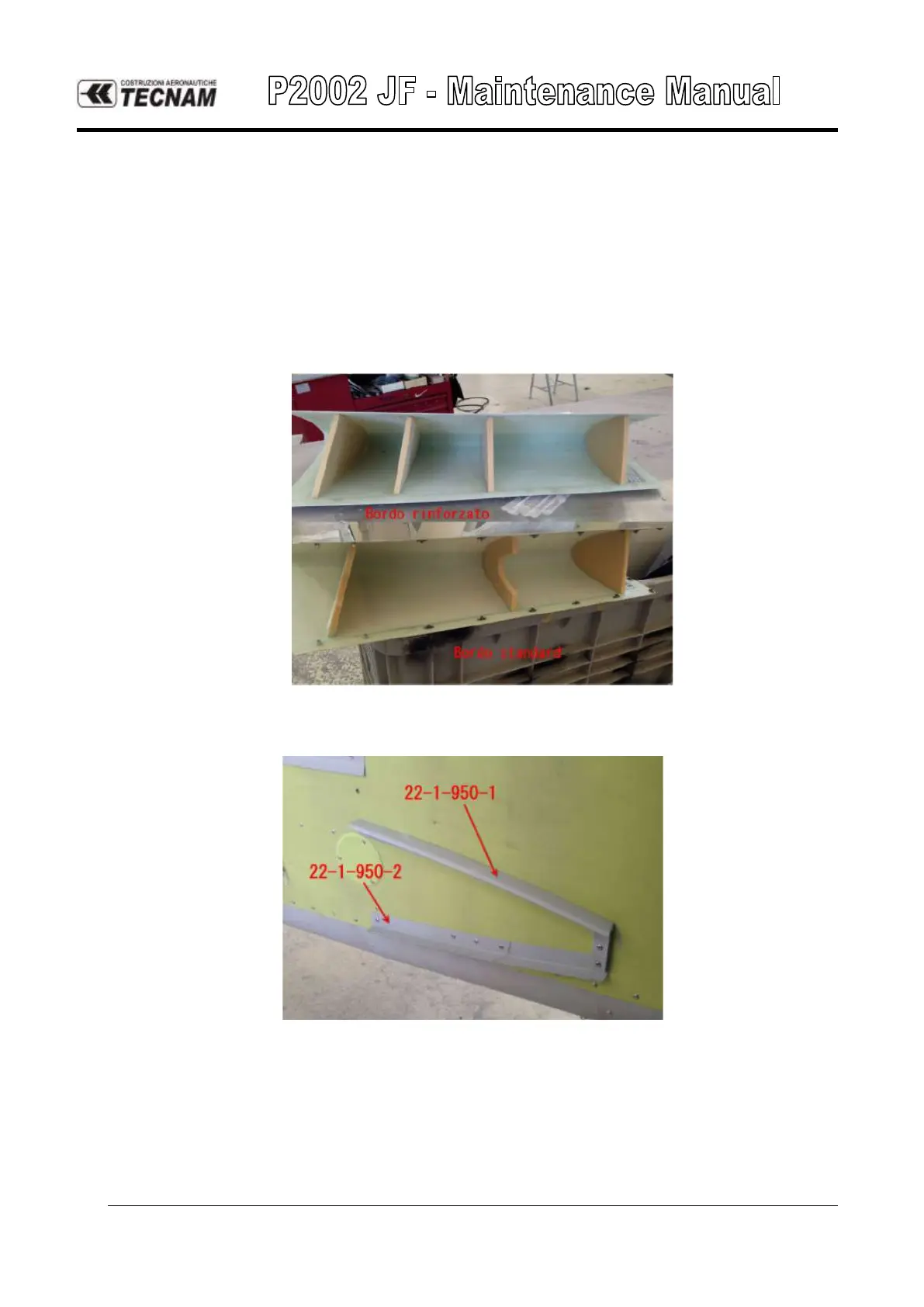

FIGURE 6-1 REINFORCEMENT ON THE RIGHT WING LEADING EDGE
FIGURE 6-2 FUSELAGE REINFORCEMENT
