Tecnam P2002 JF - NLG Wheel Scheme; Nose Wheel Disassembly

Page 203 2
nd
Edition – Rev 0
32-40
NOSE LANDING GEAR – MAINTENANCE PRACTICES
5. NOSE WHEEL DISASSEMBLY
Procedure
Step
no.
NLG removal
Task description
Additional info &
References
1.
Make sure Master Switch is turned OFF.
WARNING
INSURE AIRCRAFT IS SECURE AND
STABLE BEFORE BEGINNING ANY
WORK, WORKING UNDER AN
IMPROPERLY STABILIZDED
AIRCRAFT COULD CAUSE INJURY OR
DEATH
2.
Lift aircraft on the jacks
Refer to Chapter 07-0,
Jacking Procedure
As alternative, engage
parking, chock main
wheels, press down the
stabilator front spar,
adjacent to the
fuselage, to raise the
nose wheel; then place
the nose trestle in
correspondence of the
first fuselage bulkhead.
3.
Remove bolt (8), nut (7) and washers (6)
Refer to Figure 21.
1.
Remove caps (5)
Refer to Figure 21.
2.
Pull wheel assembly off the fork, separate axle
83) and spacers (4)
Refer to Figure 21.

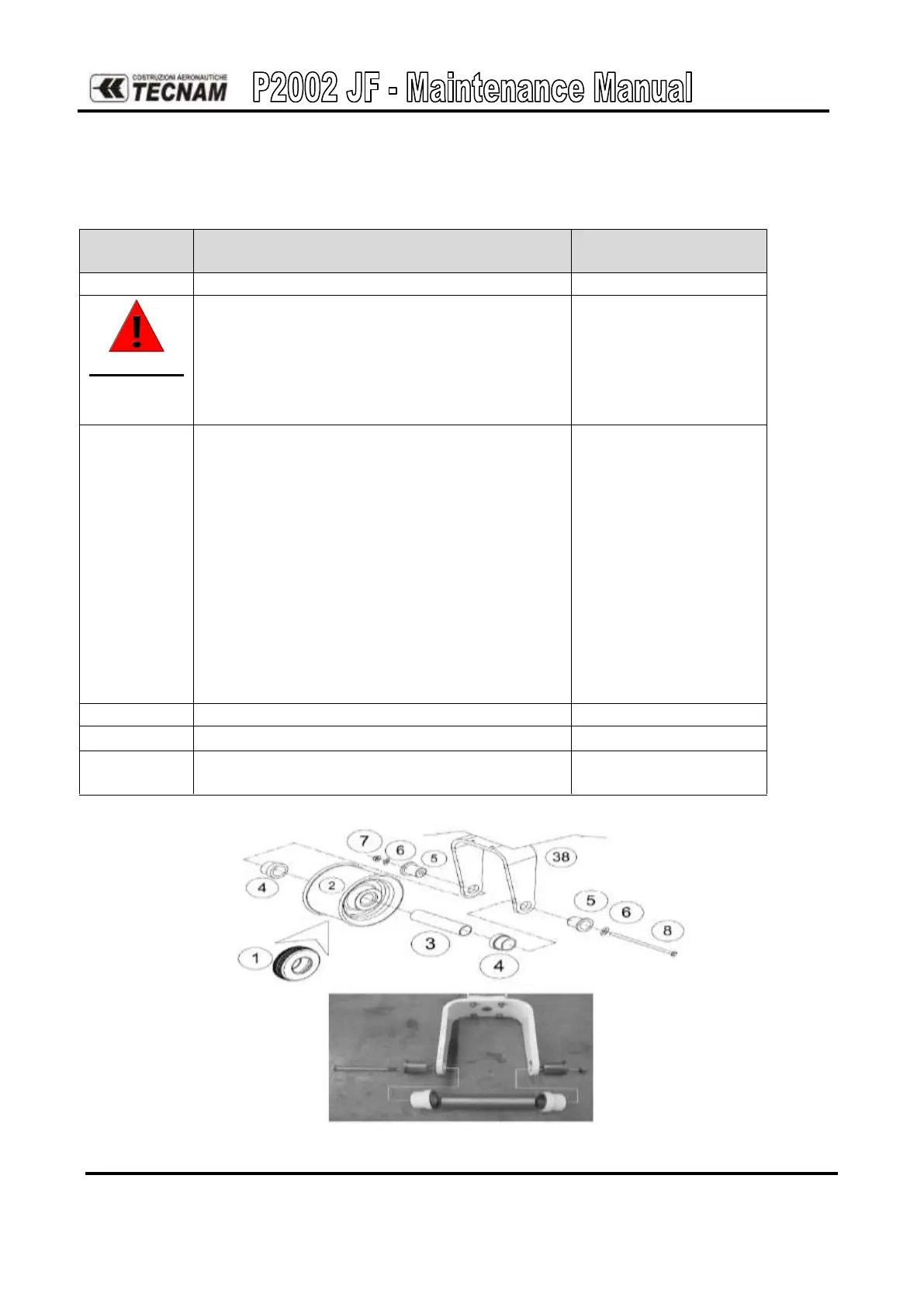

Figure 21. – NLG wheel scheme
