BRAKE SYSTEM SERVICING PRACTICES

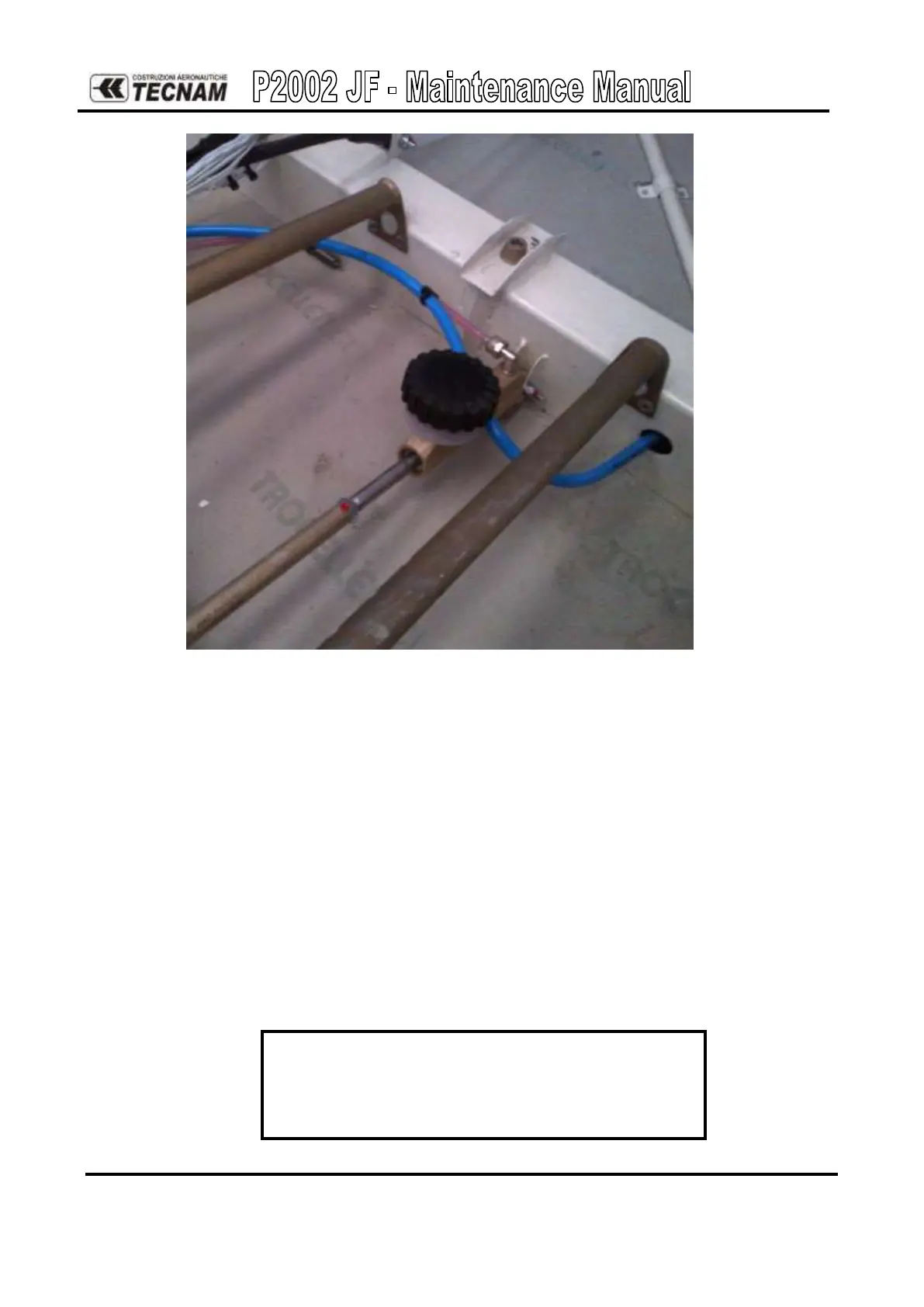

Figure 11. – Brake fluid reservoir
TOE BRAKE SYSTEM (optional)
General
Overall oil quantity in the brake system is 400ml (order of magnitude). Fluid is drawn from
the reservoir by the brake cylinders to maintain the fluid volume required for maximum
braking efficiency.
The oil level check procedure is addressed below; refer to Chapter 32 for bleeding and filling
brake system procedures.
APPROVED HYDRAULIC FLUID SPECIFICATION:
MIL-H-5606, (e.g. AEROSHELL Fluid 41)
