AIR INTAKES – DESCRIPTION AND OPERATION
71-30 AIR INTAKES
DESCRIPTION AND OPERATION
Air intakes system allows an air flow towards air-box and then to carburetors:
both hot and cold air flow are conveyed to air-box. Cold air flow reaches air-box
through front air inlet. Hot air flow, instead, comes from heat exchanger. It is pos-
sible to mix cold and hot air flow acting on air box valve through the carburetor.
Air Inlet
Air Inlet
To Carburettor
To Carburettor

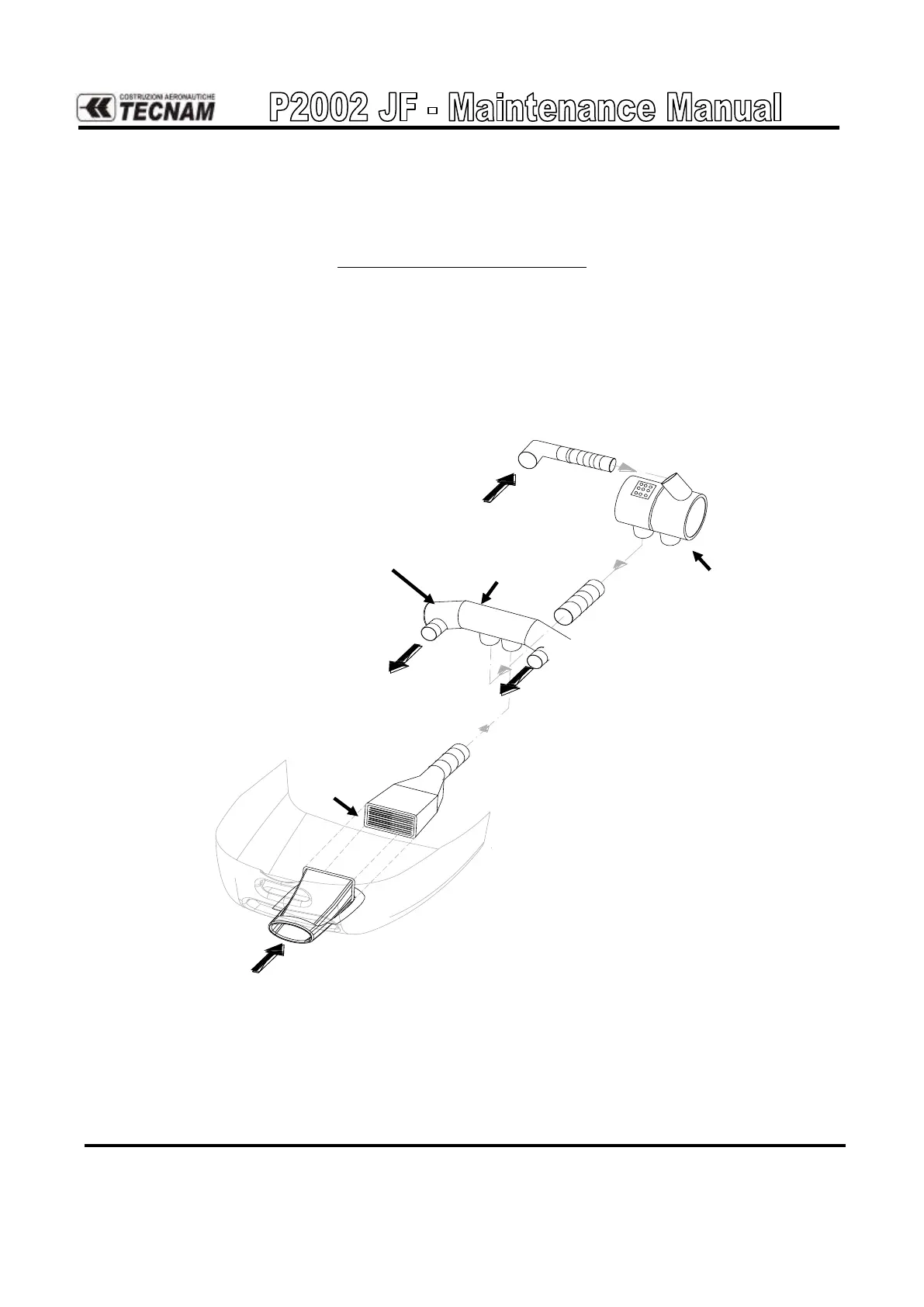

Figure 8. - Carburetor heating system
Air box
heat exchanger
valve
Air filter
