COMM 1 AND 2 – DESCRIPTION AND OPERATION
 Interfaces to most CDI (w/resolver), HSI, and autopilot systems
 VOR receiver displays To or From radial of the active channel
 VOR monitor displays From radial of the standby channel
 Back course annunciator output
 LOC enable annunciator output
 Internal RF diplexor
 Active and standby flip/flop frequencies
 DME tuning and data display
SL30/SL40 is installed on the central instruments panel area, within easy view and reach of
the pilot, by means of a mounting frame for ease of installation, connections and service of
the unit.

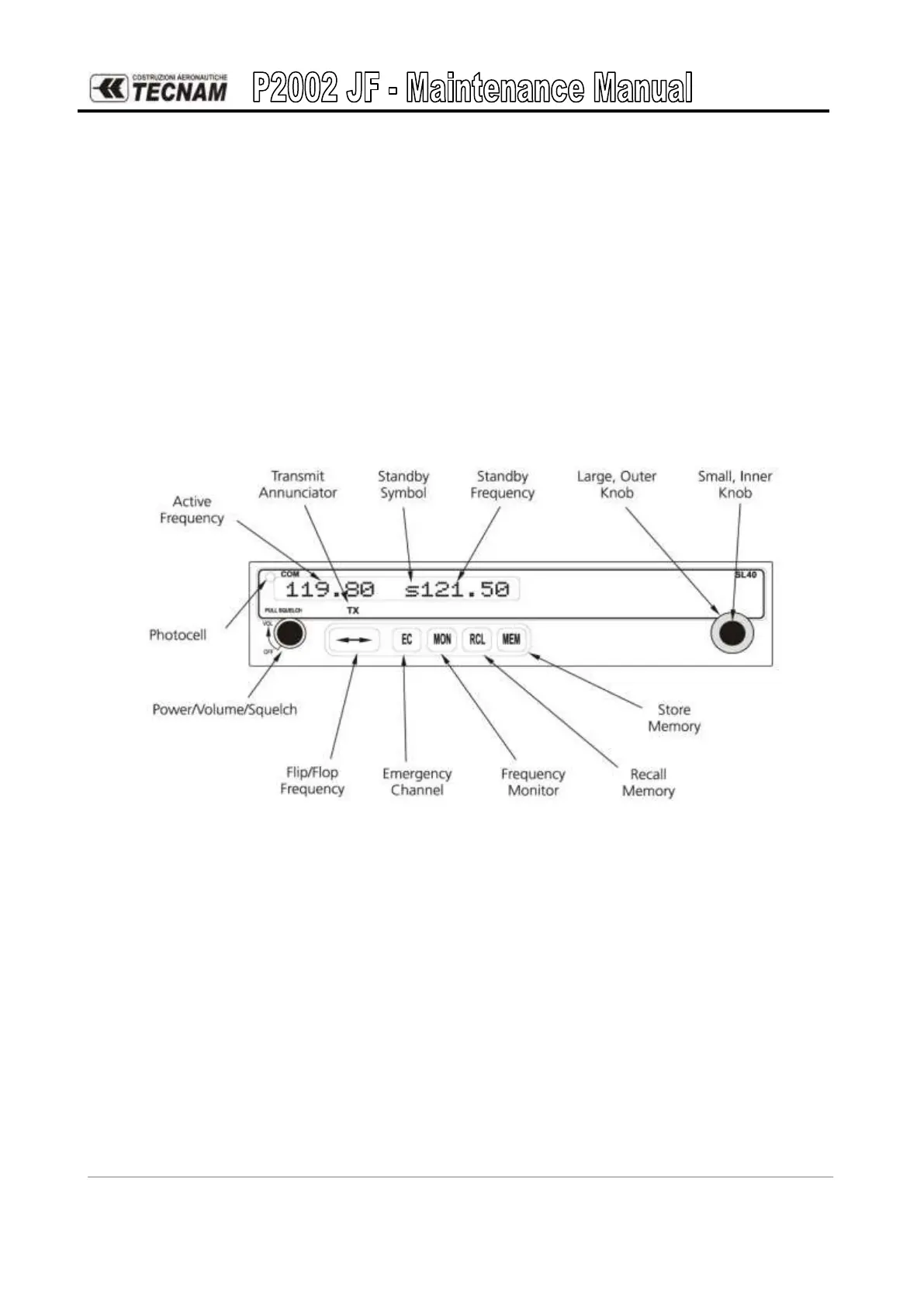

Figure 7. - Control Description SL 40
