Tecnam P2002 JF - Bellcrank Fixing Screw; Control Axis Removal;Installation

Page 203 2
nd
Edition – Rev 0
27-20
AILERONS – MAINTENANCE PRACTICES

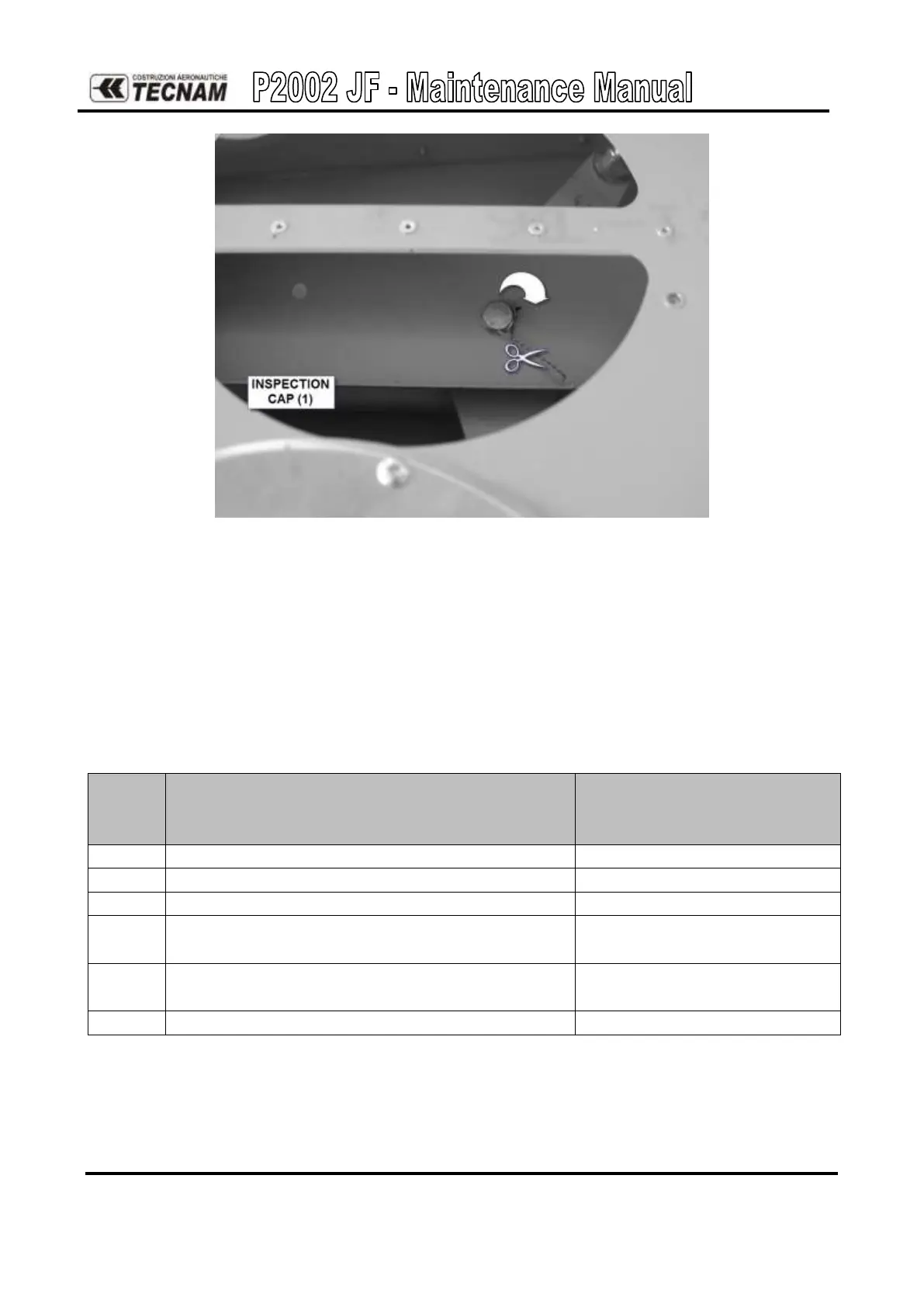

Figure 6. - Bellcrank fixing screw
3. CONTROL AXIS REMOVAL/INSTALLATION
Step
Task description
Additional info & References
1.
Remove seat(s)
See Chapter 12.41
2.
Unscrew and remove floor panel under seats
Refer to Figure 7.
3.
With a wrench unscrew the control axis fixing bolt
Refer toFigure 8.
4.
Replace (if necessary) control axis: Torque
according the torque value
See Chapter 20 Torque values
5.
Reinstall floor panel and seats.
See Chapter 12.41 – Figure 7.
6.
Perform the final inspection
