Page 1 2
nd
Edition – Rev 0
25-10
CABIN INTERIORS – DESCRIPTION AND OPERATION
25-10 CABIN INTERIORS
DESCRIPTION AND OPERATION
The cabin has two seats. Each seat is horizontally adjustable, they are mounted on two parallel
tracks, attached to the compartment floor structure, which allow the seat to move forward or
rearward.
The cabin has accommodation for dual flight controls, instruments, electrical and electronic
control panels conveniently located for crew accessibility.
Each seat consists of the following main components:
(1) Primary Structure Assembly consisting of the sitting and backrest assemblies.
(2) Horizontal Position Adjustment System allowing for the horizontal position adjustment
through a lever located in the side of the structure.

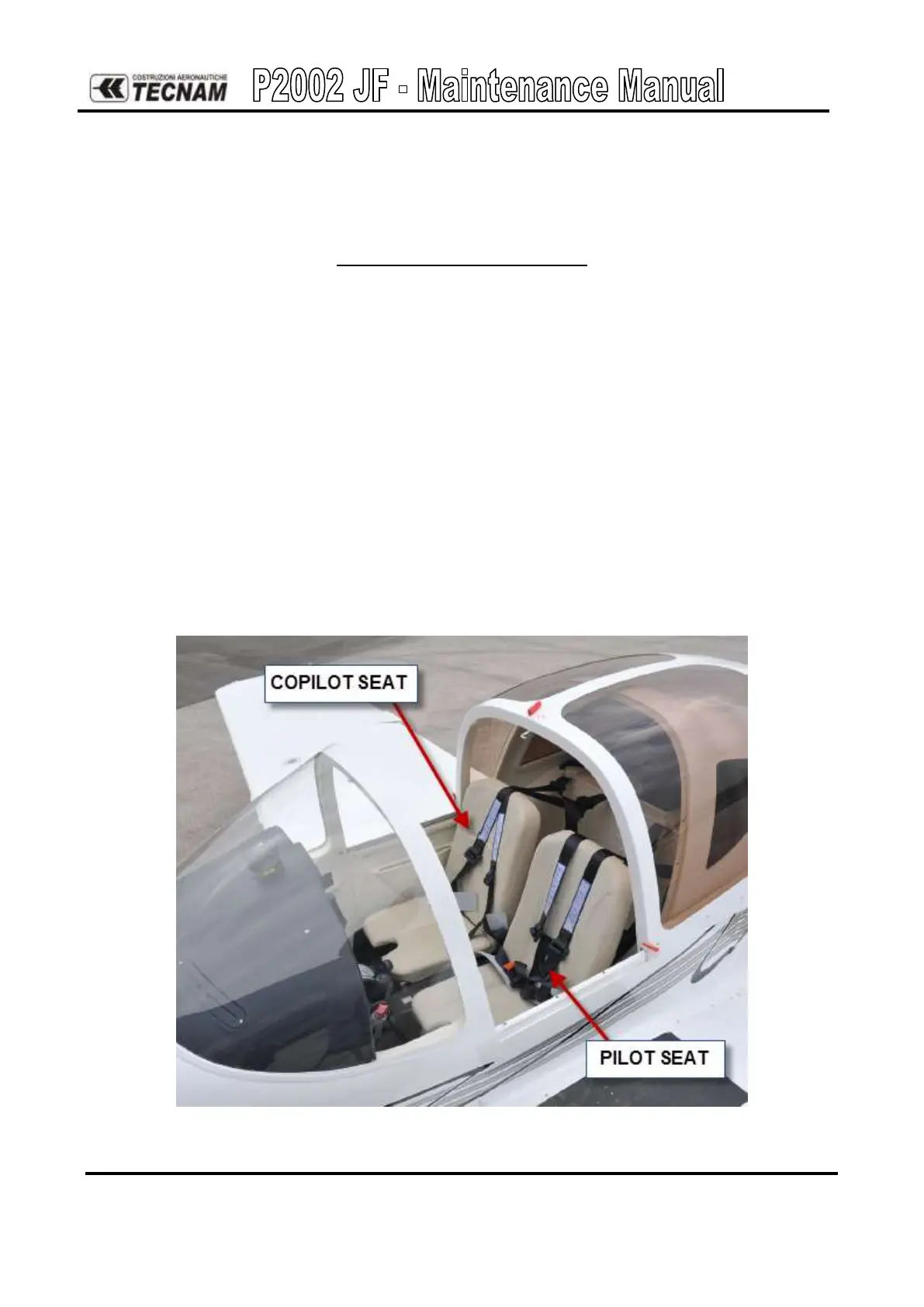

Figure 1. - Cabin interiors
