Tecnam P2002 JF - Muffler and Heat Exchanger

Page 2 2
nd
Edition – Rev 0
78-10
EXHAUST – DESCRIPTION AND OPERTION
Fig. item
Description
1
Muffler
2
Assy rear tube
3
Assy rear tube
4
Assy front tube
5
Assy front tube
6
Spring
7
Heat exchanger
8
Exhaust ring
9
Exhaust ring
The system above described is independent from cabin and carburetor heating systems
(see respectively Chapter 21 and 71). Nevertheless, through the heat exchanger joined
to muffler and riveted on exhaust rings, ram air is warmed and conveyed to cabin heat
and defrost system and carburetors.

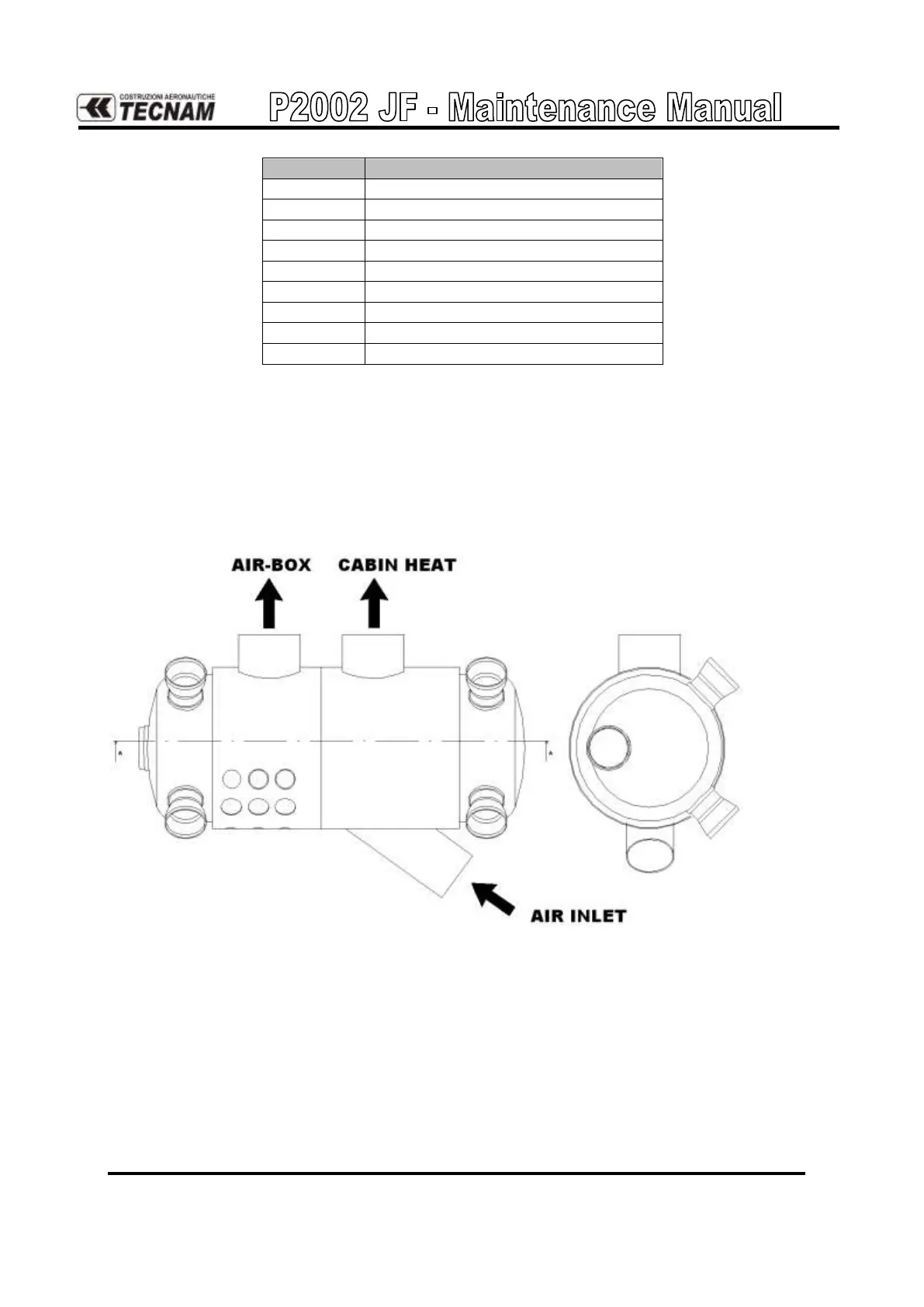

Figure 2. – Muffler and heat exchanger
