Page 204 2
nd
Edition – Rev 0
12-20
OIL SYSTEM – SERVICING PRACTICES

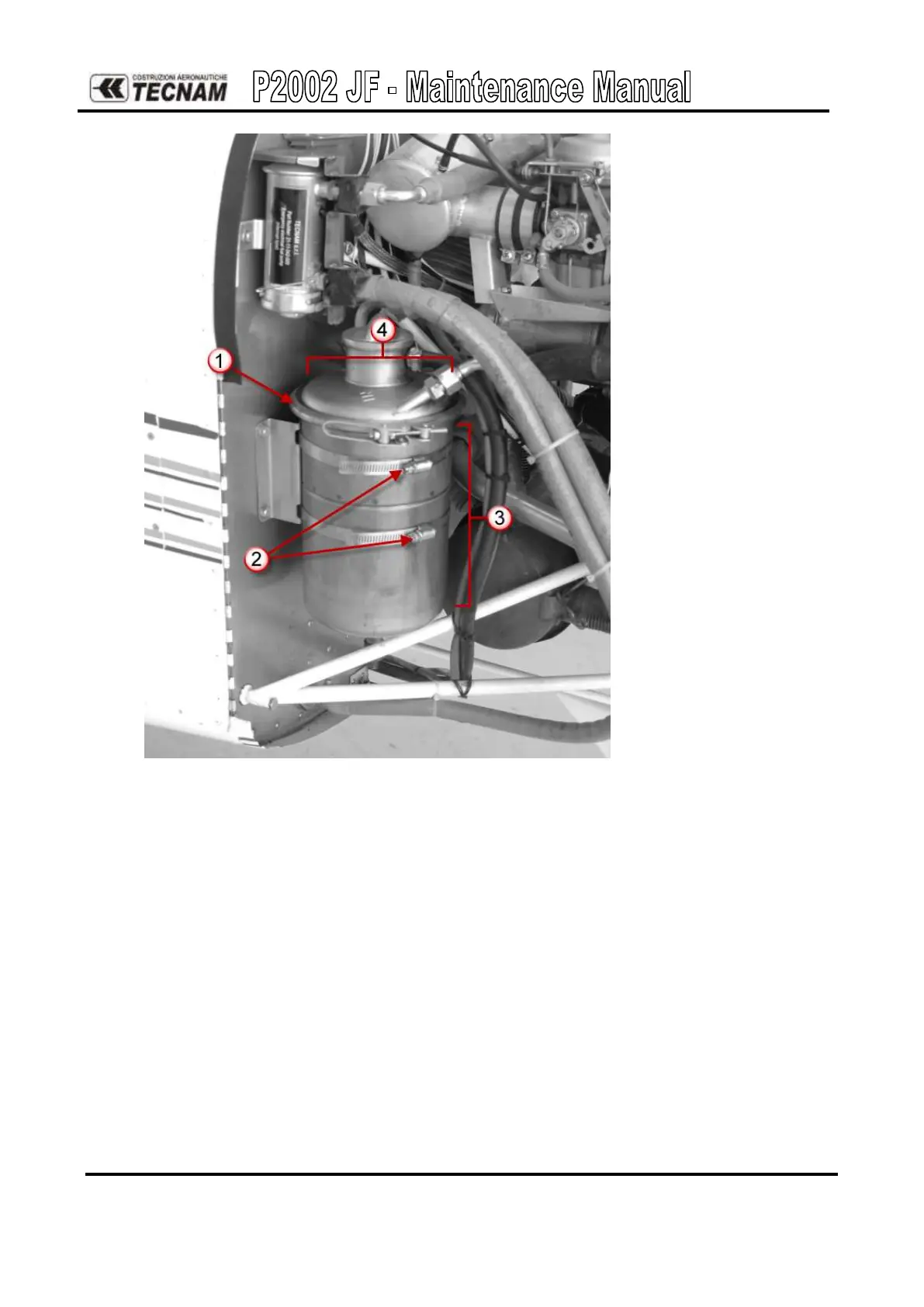

1. Cup’s safety ring
2. Restraint clamps
3. Oil tank
4. Oil filling cup
Figure 5. – Oil tank
Oil Tank Cleaning
In event of heavy oil contamination apply the following procedure:
1. Engage parking brake, master switch OFF, disconnect battery
2. Remove upper and lower engine cowling
3. Refer to Rotax Engine Maintenance Manual P/N 899735 – last issue, for
detailed instructions for oil tank cleaning
4. Reinstall upper and lower engine cowling
