Page 3 2
nd
Edition – Rev 0
53-10
FUSELAGE – DESCRIPTION AND OPERATION
f

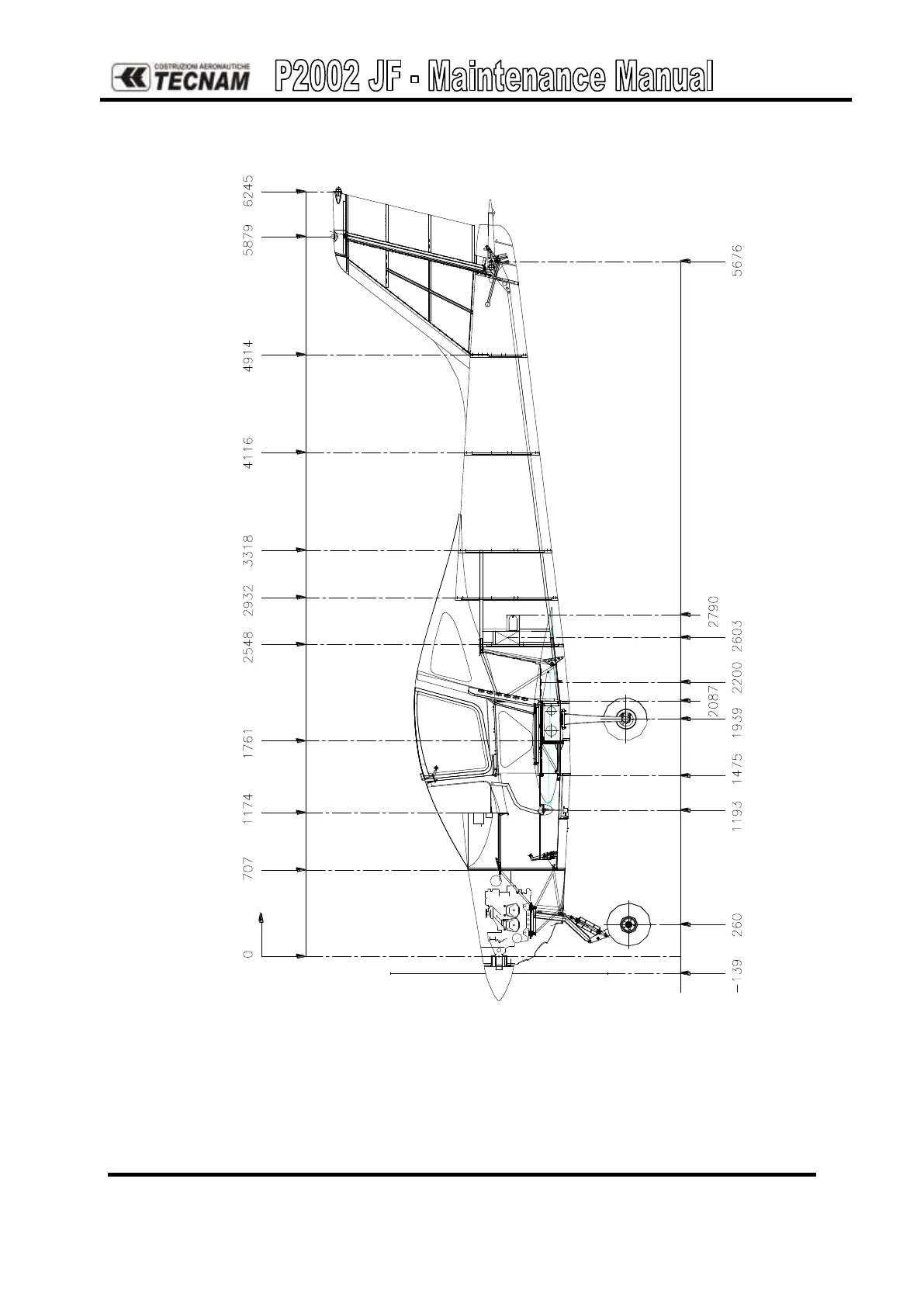

Figure 3. - Fuselage longitudinal stations
The longitudinal Datum reference is the forward side of the engine’s propeller flange
without the spacer.
