Tecnam P2002 JF - Tail Cone Fairing; Trim Actuator Assy

Page 203 2
nd
Edition – Rev 0
27-50
RUDDER – DESCRIPTION AND OPERATION

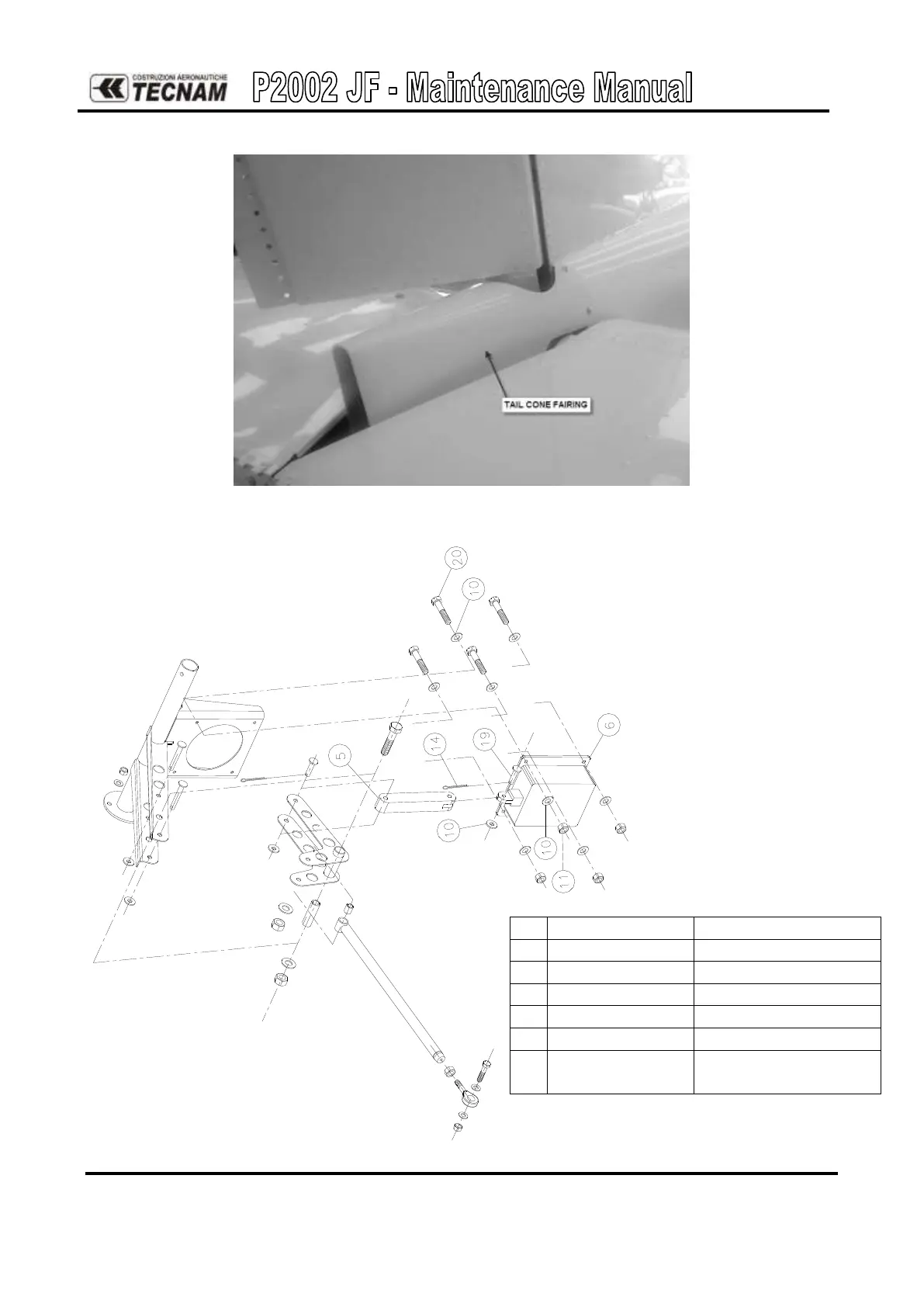

Figure 22. - Tail cone fairing
Figure 23. - Trim actuator assy
5
22-5-138-1
Connecting rod
6
T2-10A
Actuator
10
UNI-6592-4
Washer
11
UNI-7473-4
Stop nut
14
MS24665-153
Cotter pin
19
MS20392-2C19
Clevis pin
20
UNI-5737-4-16
Bolt hex. head M4
L=16 cr. 8.8
