AIRPLANE GENERAL DESCRIPTION
Fuselage
The fuselage comprises the cabin and the baggage compartment.
It is composed by a light-alloy semi-monocoque structure wrapped-around by stressed
stretched panels. Nose cone is made of composite material. Tail fairing is made of composite
material. Cabin and baggage compartment floor is a warping of beams and keelsons
supporting the seats guides, baggage and other components.
Seats access occur by a sliding canopy; In tail cone, two spar frames support the horizontal
and vertical empennages attachments.

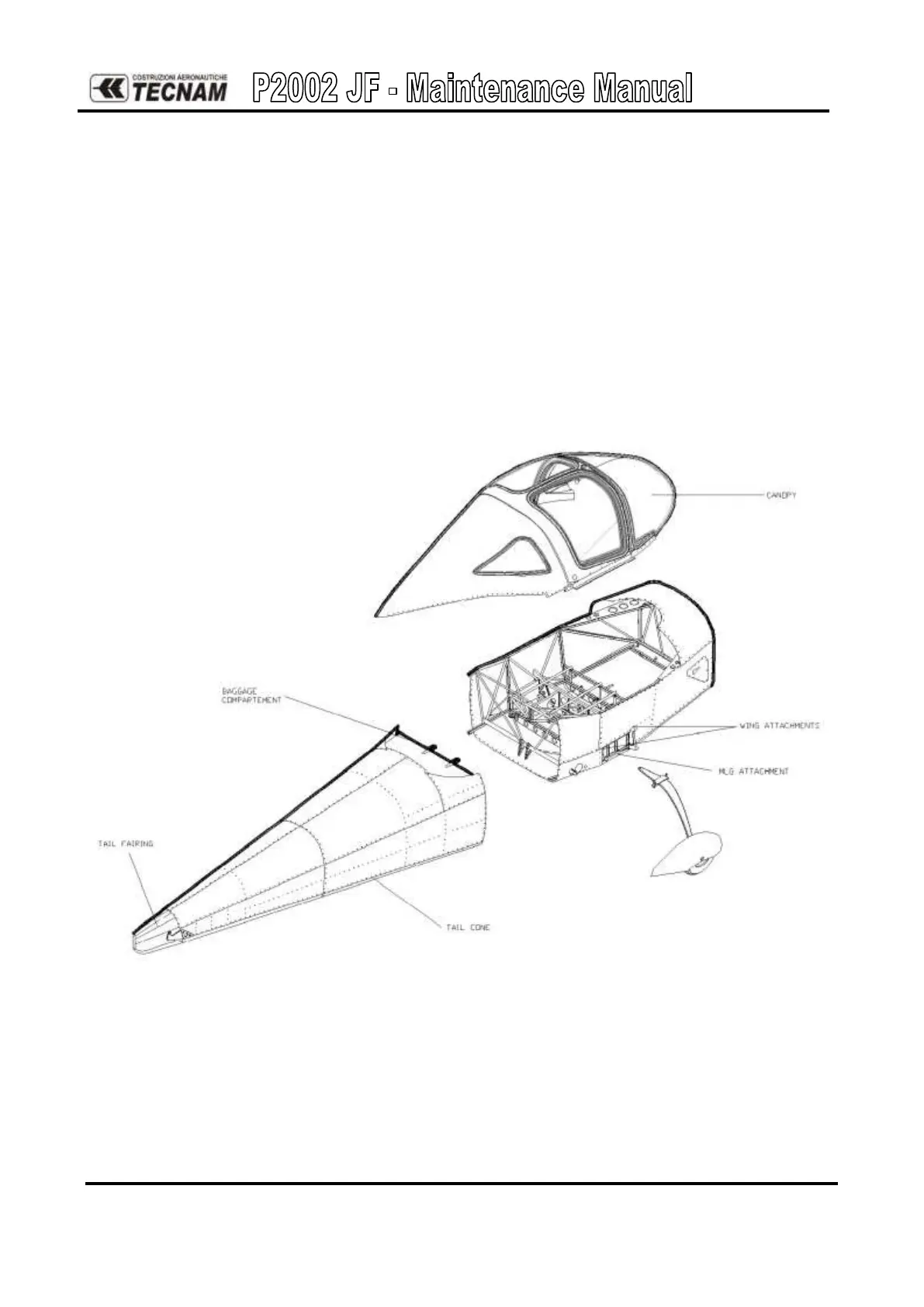

Figure 3: Fuselage
