Page 6 2
nd
Edition - Rev 0
79-10
OIL SYSTEM – DESCRIPTION AND OPERATION
Oil tank
The oil tank is installed behind the firewall protected from heat sources. Some
holes on the bracket structure allow for air ventilation (see figure below).

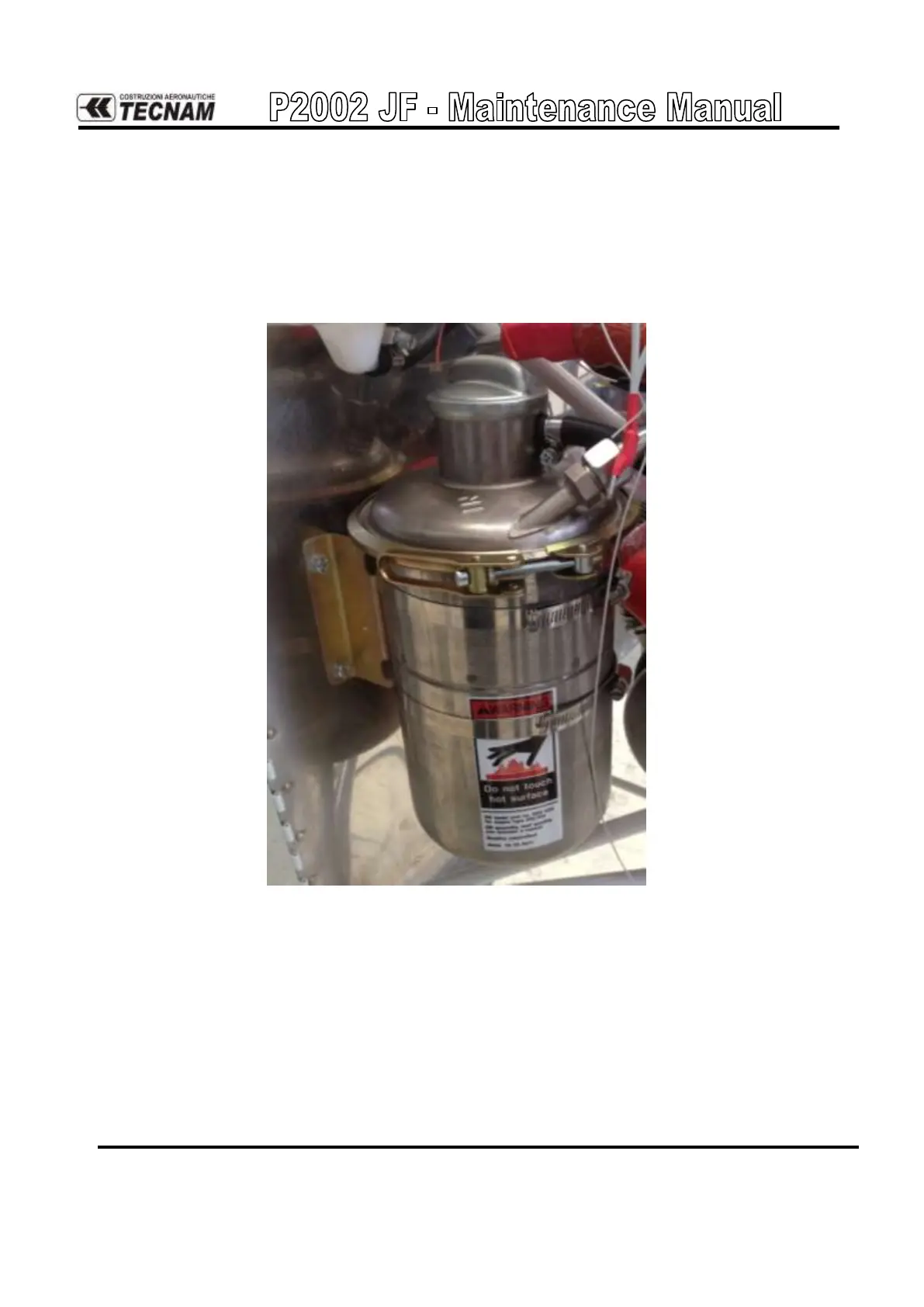

Figure 6. - Oil tank ventilation flow
The reservoir gathers also the oil coming from the breather hose and it is fitted
with a dipstick: see figure below, item 11. An hose, immediately located beneath
the filler cap, allows for oil relief discharged in a safe zone in the cowling far
from exhausts and other heat sources.
