Tecnam P2002 JF - Instrument Panel Right Side (Typical Layout)

Page 3 2
nd
Edition – Rev 0
31-10
INDICATING SYSTEM – DESCRIPTION AND OPERATION
4
321
5
12
7
6
9
10
11
8

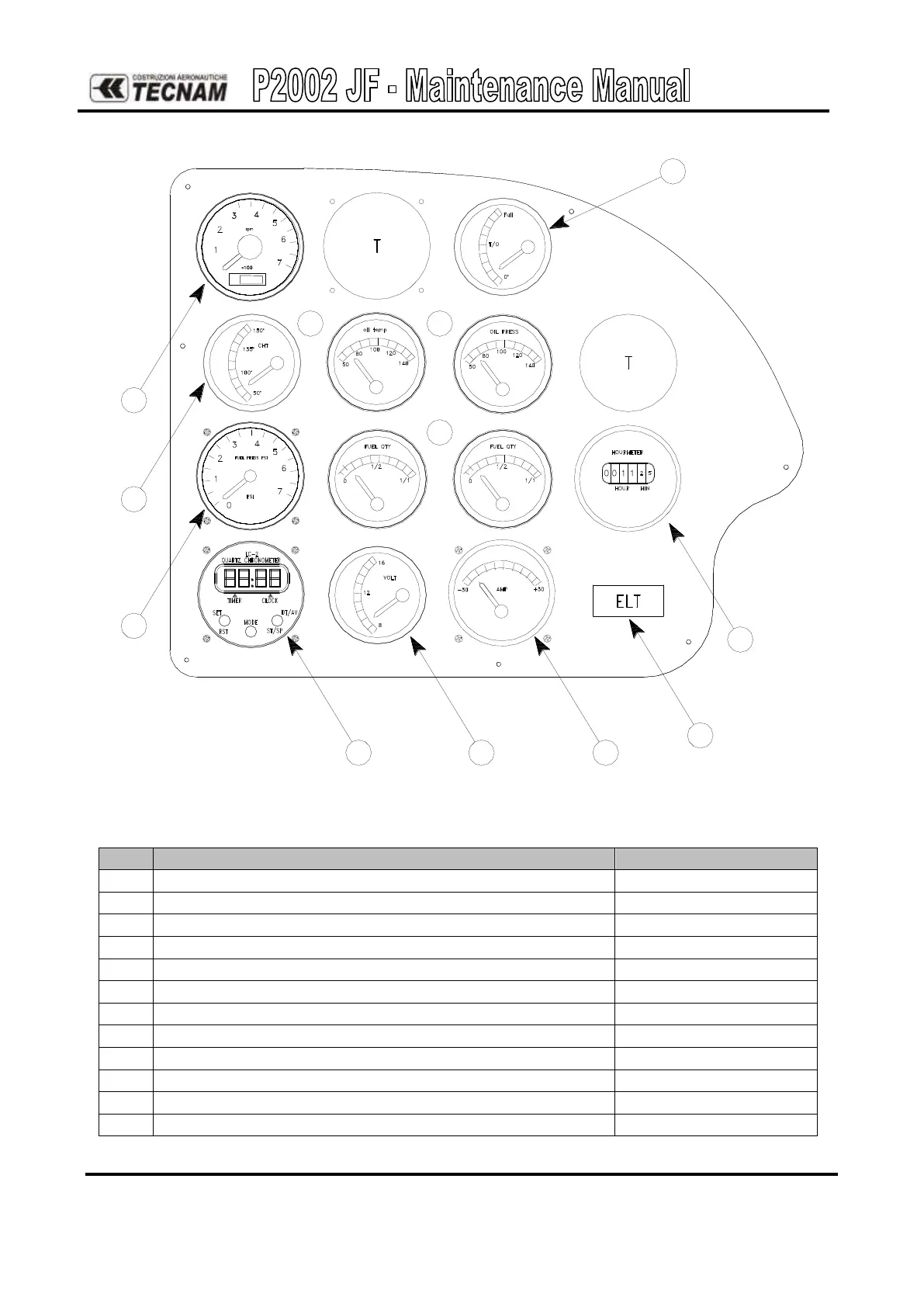

Figure 3. - Instrument panel right side (Typical layout)
Item
Description
Reference chapter
1
Chronometer
31
2
Voltmeter
24
3
Ammeter
24
4
ELT
31
5
Hour-meter
31
6
Fuel q.ty indicator
24
7
Oil pressure indicator
31
8
Oil temp indicator
31
9
Fuel pressure indicator
24
10
CHT
31
11
RPM
31
12
Flap indicator
31
