Tecnam P2002 JF - Flap Actuator

Page 202 2
nd
Edition – Rev 0
27-30
FLAPS – MAINTENANCE PRACTICE
35
36
32
40
38
39
34
37
41
42
43
11
39

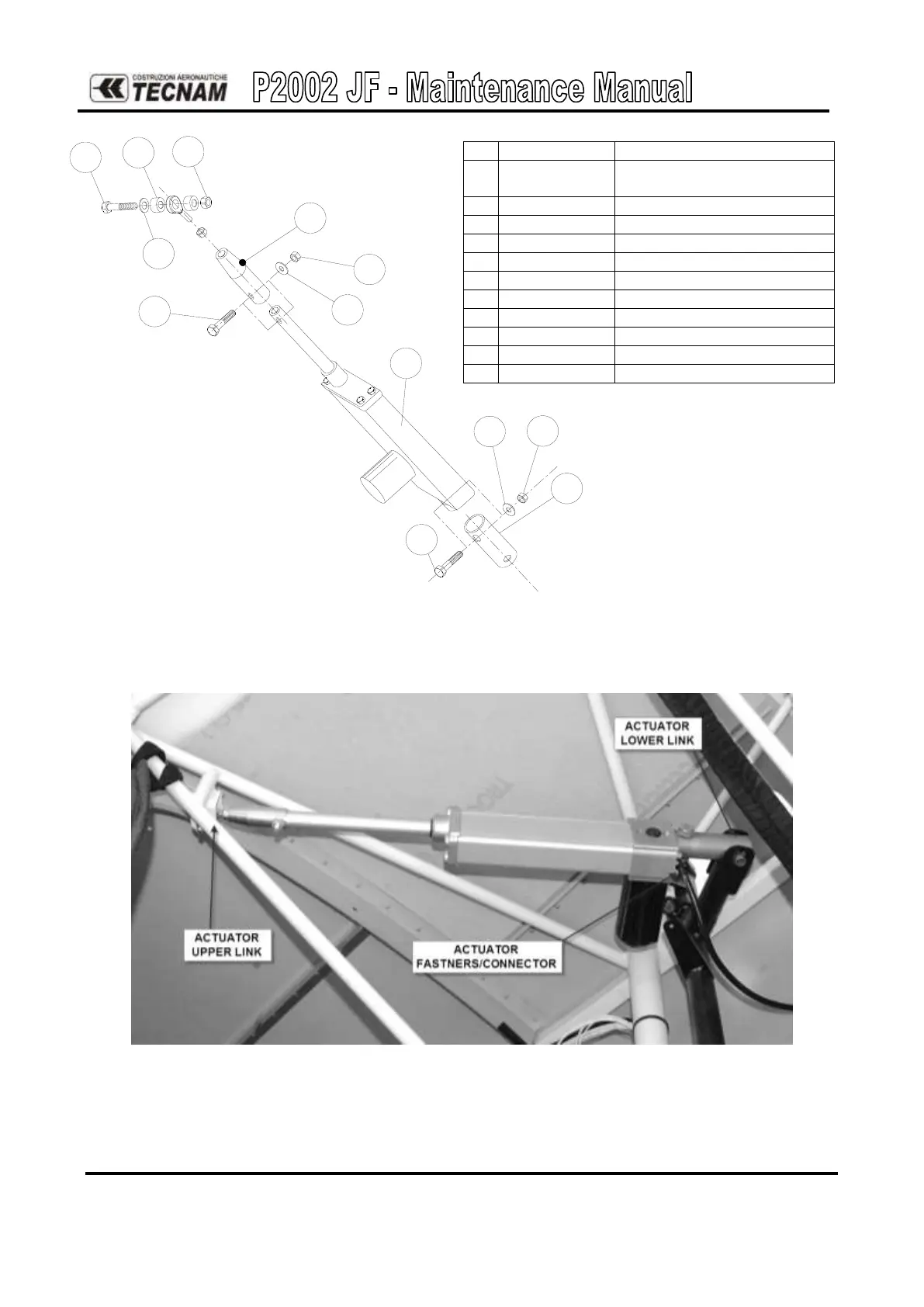

Figure 16. - Flap actuator
Figure 17 - Flap actuator
11
UNI-7473-6
Stop nut D=6
32
UNI-5737-
8x40
Bolt hex. head M8 L=40 cr. 8.8
34
22-5-172-1
Lower liner actuator link
35
UNI-7473-8
Stop nut M8
36
UNI-6592-8
Washer D=8
37
6812607
Flap actuator
38
UNI-7473-6
Stop nut M6
39
UNI-6592-6
Washer D=6
40
UN-I5737-6-35
Bolt hex. head M6 L=35 cr. 8.8
41
22-5-174-1
Upper liner actuator link
42
UNI-5737-6-45
Bolt 6x45
43
22-6-368-1
Thickness
