Page 1 2
nd
Edition – Rev 0
31-10
INDICATING SYSTEM – DESCRIPTION AND OPERATION
31-10 INDICATING SYSTEM
DESCRIPTION AND OPERATION
The following gives an overall view of the instrument panel (typical layout) and, for each
part of it, a complete list of the indicators with their own reference ATA Chapter where it is
addressed.
The instrument panel is divided into five parts (refer to Fig. 1). The left side includes the
flight instruments (Fig. 1 panel A); the right side (Fig. 1 panel B) includes the control
instruments, the central panel (Fig. 1 panel C) includes the communication instruments. The
two lower panels (Fig. 1 panel D and panel E) include switches.

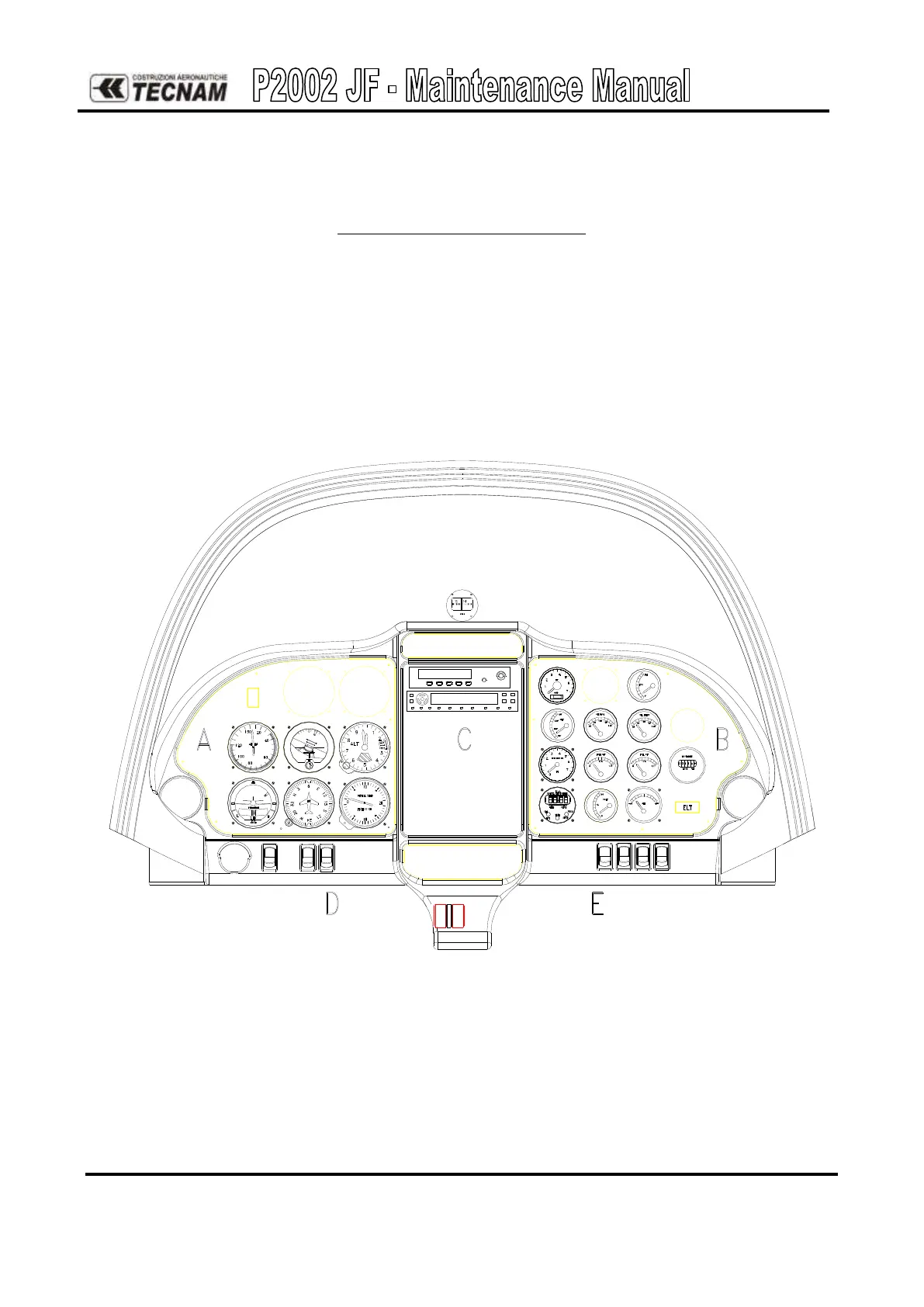

Figure 1. - Instrument panel (typical layout)
