INDICATING SYSTEM –MAINTENACE PRACTICES
1. SCREWED INDICATORS REPLACEMENT
The following procedure applies to those indicators fixed to the instrument panel by means
of four screws drawing a square around the indicator itself (see figure below for reference).

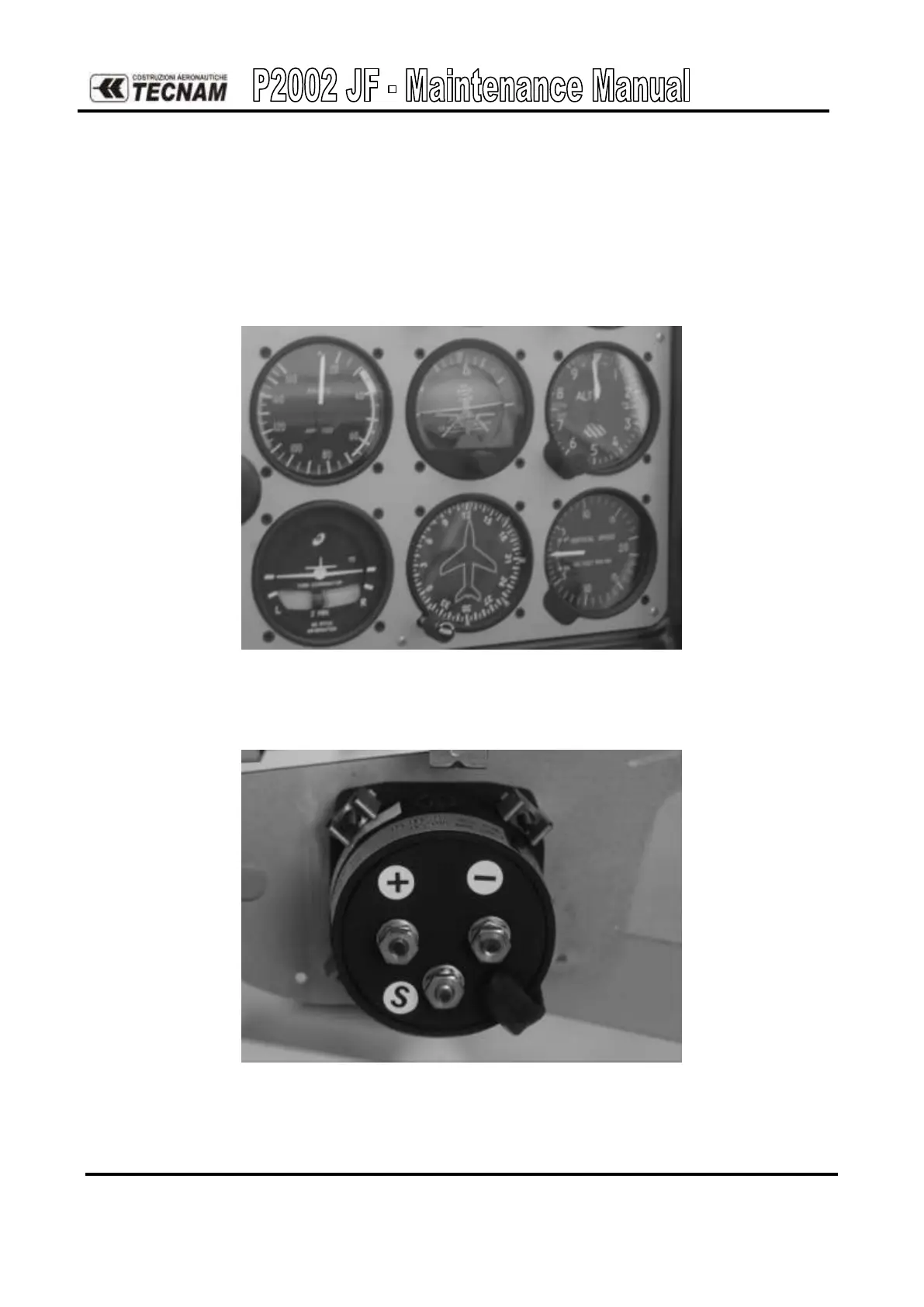

Figure 6. - Examples of screwed indicators
Figure 7. - Examples of screwed indicators (rear view)
