Page 1 2
nd
Edition – Rev 0
33-20
EXTERNAL LIGHTS – DESCRIPTION AND OPERATION
33-20 EXTERNAL LIGHTS
DESCRIPTION AND OPERATION
External lights depends on the aircraft configuration too.
STANDARD CONFIGURATION
Position lights
They provide the aircraft flight direction identification.
Navigation lights are installed on the wing tips and on top of vertical stabilizer. All
navigation lights are controlled by a single switch located on instrument panel and
are protected by a circuit breaker.
A green light is located on right wing tip, a red light on left wing tip and a white
lamp is on vertical stabilizer.
Refer to chap. 92 for electric schematic drawing.

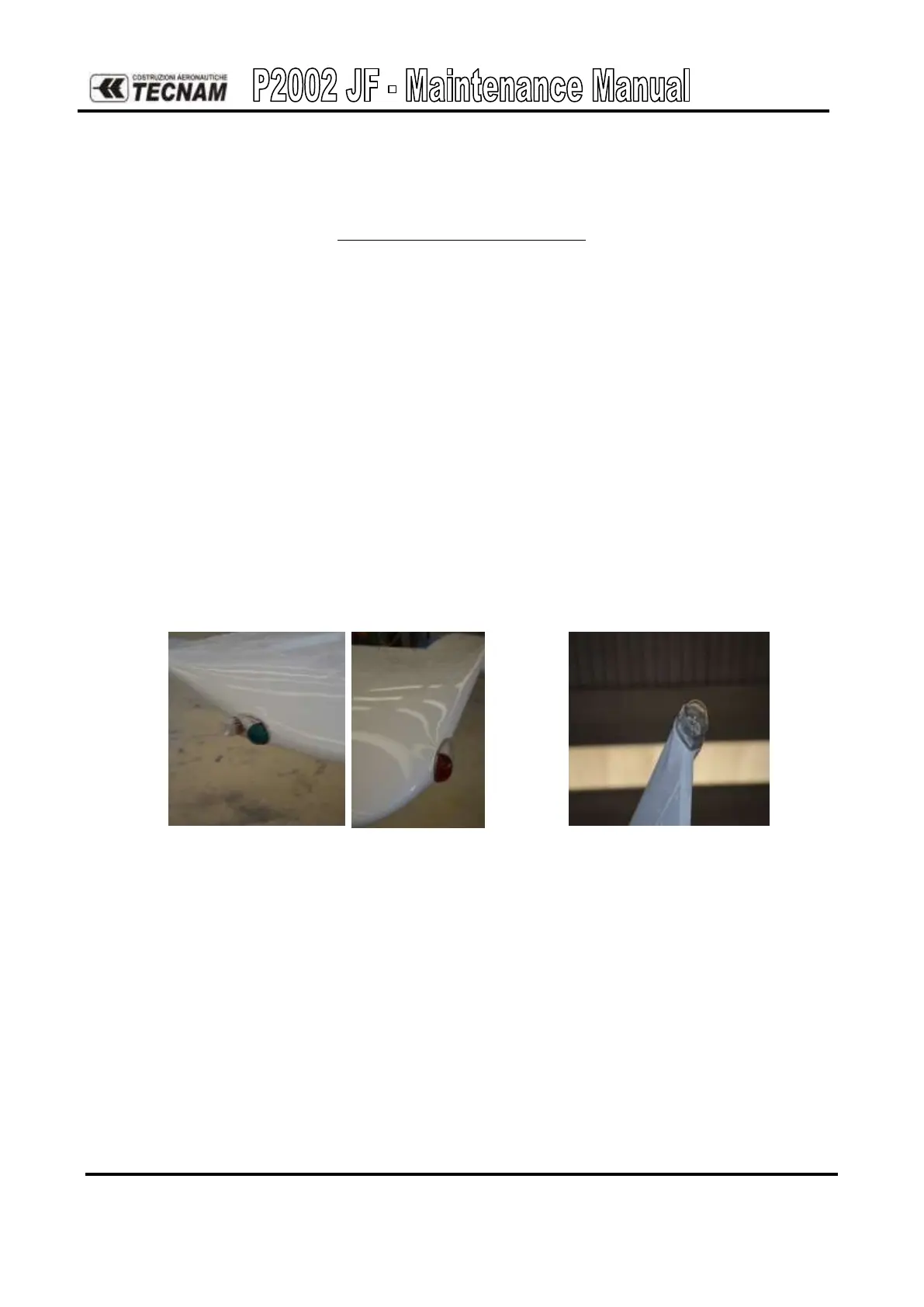

Figure 6. –Position lights
