Tecnam P2002 JF - Trim Tab Removal;Installation

Page 203 2
nd
Edition – Rev 0
55-10
STABILATOR – DESCRIPTION AND OPERATION
2. TRIM TAB REMOVAL/INSTALLATION
Procedure
Step no.
Task description
Additional info &
References
1
Engage the parking brake
2
Remove the tail cone fairing (upper and
lower)
3.
Disconnect the trim tab rod
Refer to Figure 4.
4.
Rotate the trim tab surface upward and
remove the pins that link the trim tab and the
stabilator
Refer to Figure 8.
5.
Remove the trim tab and check it. If
necessary, repair or replace
Refe to figure 9.
Reverse procedure for reinstallation, setting the torque value according to AMM ATA20 and
applying a small amount of grease on the hinges and trim tab connections. Then check the
surface travel limits

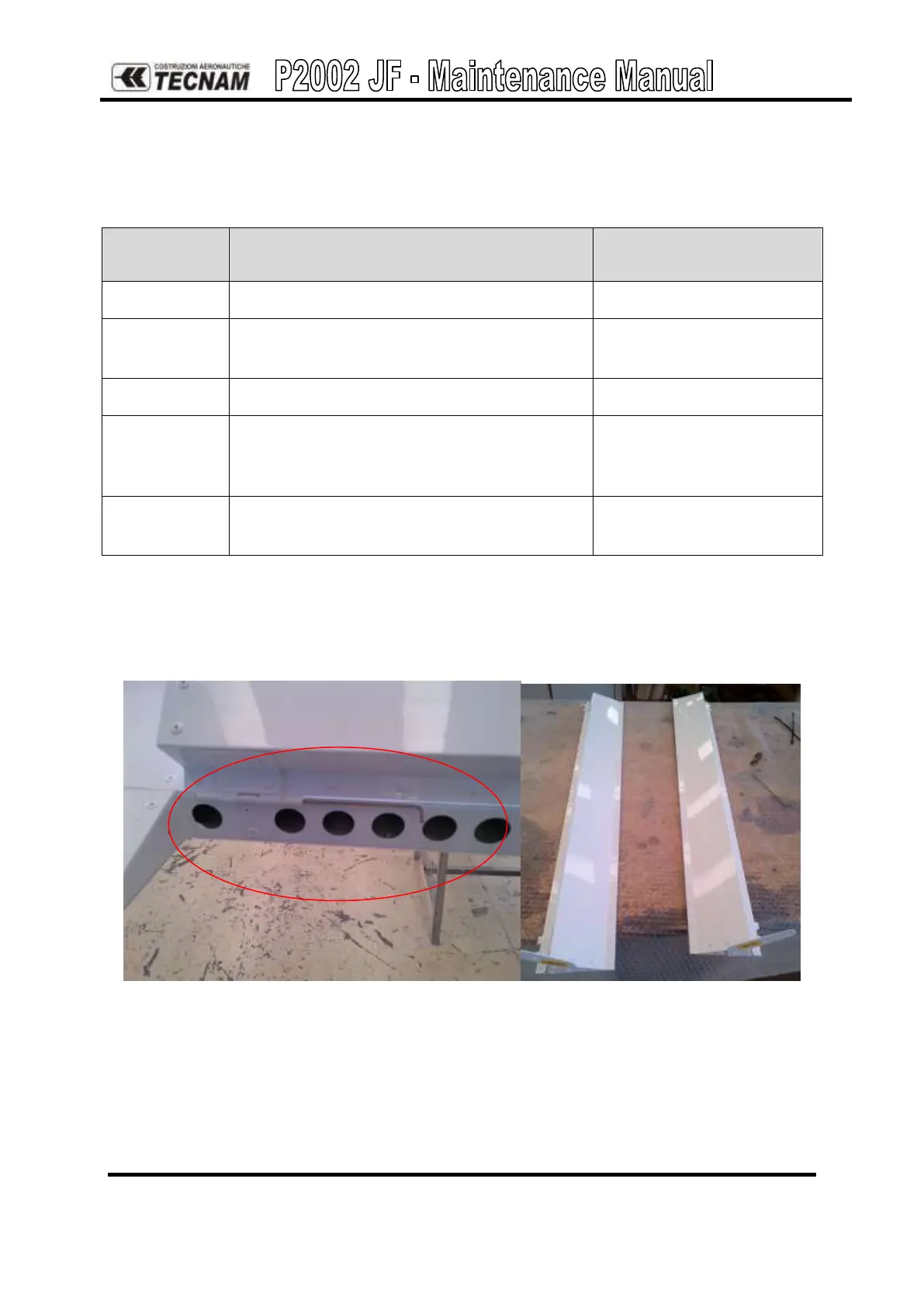

Figure 7. – Trim tab pin Figure 8. – Trim tab
