Tecnam P2002 JF - Rotax 912 S Oil Circuit Schematic (Oil Temperature 90°C to 100°C)

Page 3 2
nd
Edition - Rev 0
79-10
OIL SYSTEM – DESCRIPTION AND OPERATION

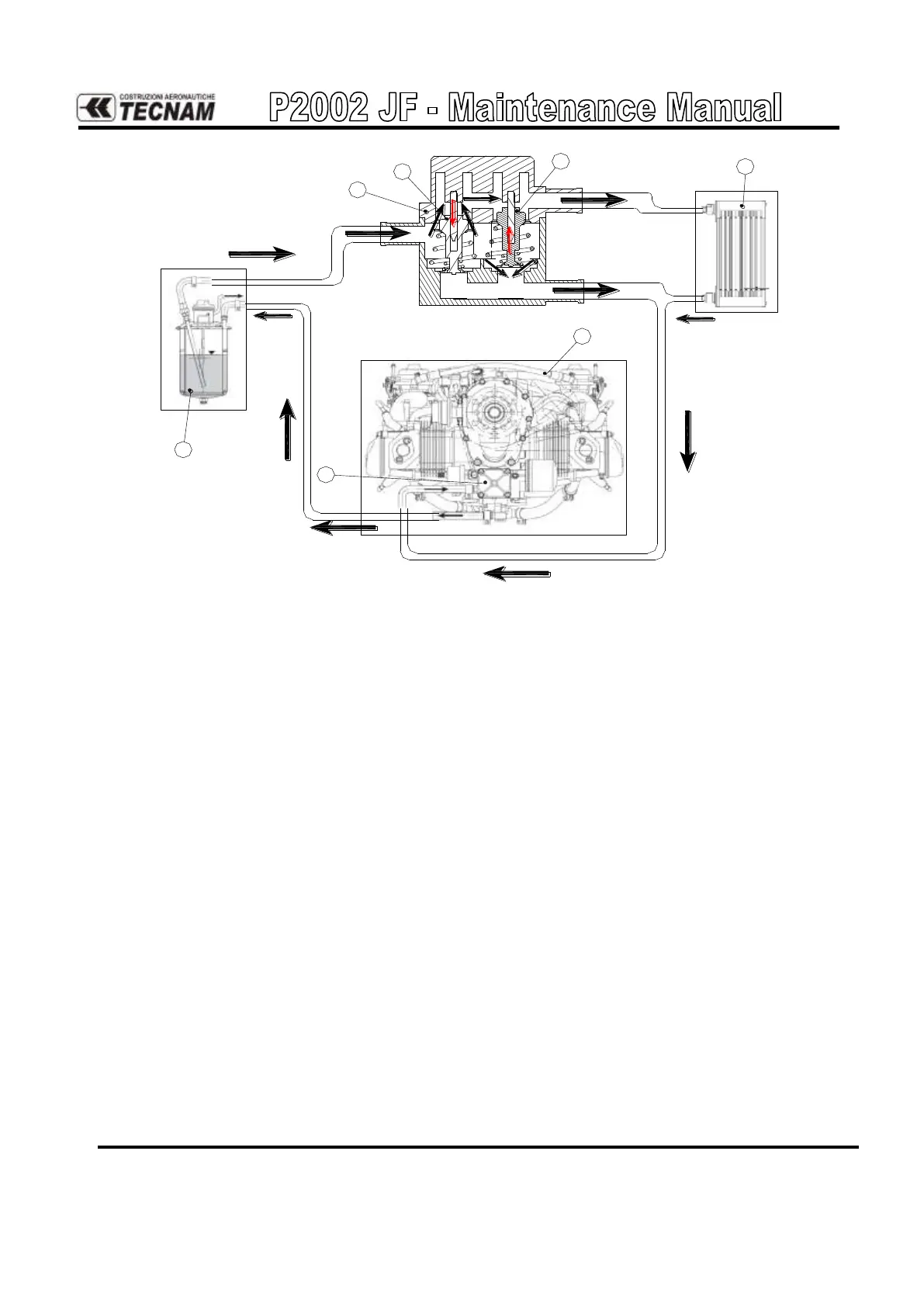

Figure 2. - Rotax 912S oil circuit schematic (oil temperature 90°C to 100°C)
Oil temperature greater than 100°C
The schematic reported in Figure 3 shows oil circulation when the oil tempera-
ture reaches and overcomes a value of 100°C. In this case, because of the opera-
tion of the second thermal sensor, the oil as a whole is conveyed toward the ra-
diator.
1
2
4
3
5
6
7
Condizione intermedia 90°C < T<100°C
