Tecnam P2002 JF - Diffuser in Open Position; Naca Intake Access Point; Pushing Point

Page 2 2
nd
Edition – Rev 0
21-20
VENTILATION – DESCRIPTION AND OPERATION

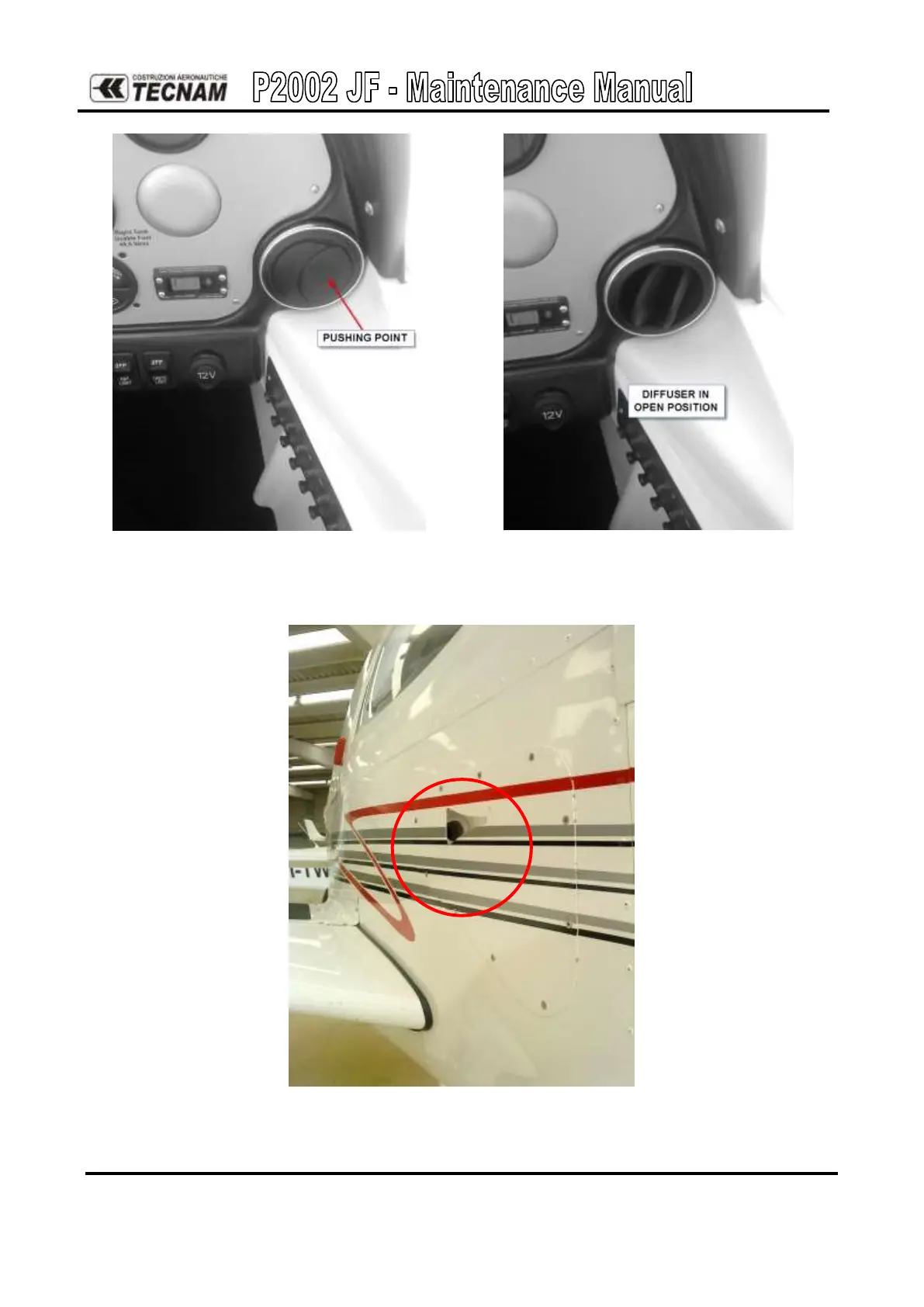

Figure 17 – Pushing point
Figure 18 – Diffuser in open position
Figure 19 - Naca intake access point
