Tecnam P2002 JF - Instrumental Panel Central Panel (Typical Layout)

Page 4 2
nd
Edition – Rev 0
31-10
INDICATING SYSTEM – DESCRIPTION AND OPERATION
1
2
4
3b
3a

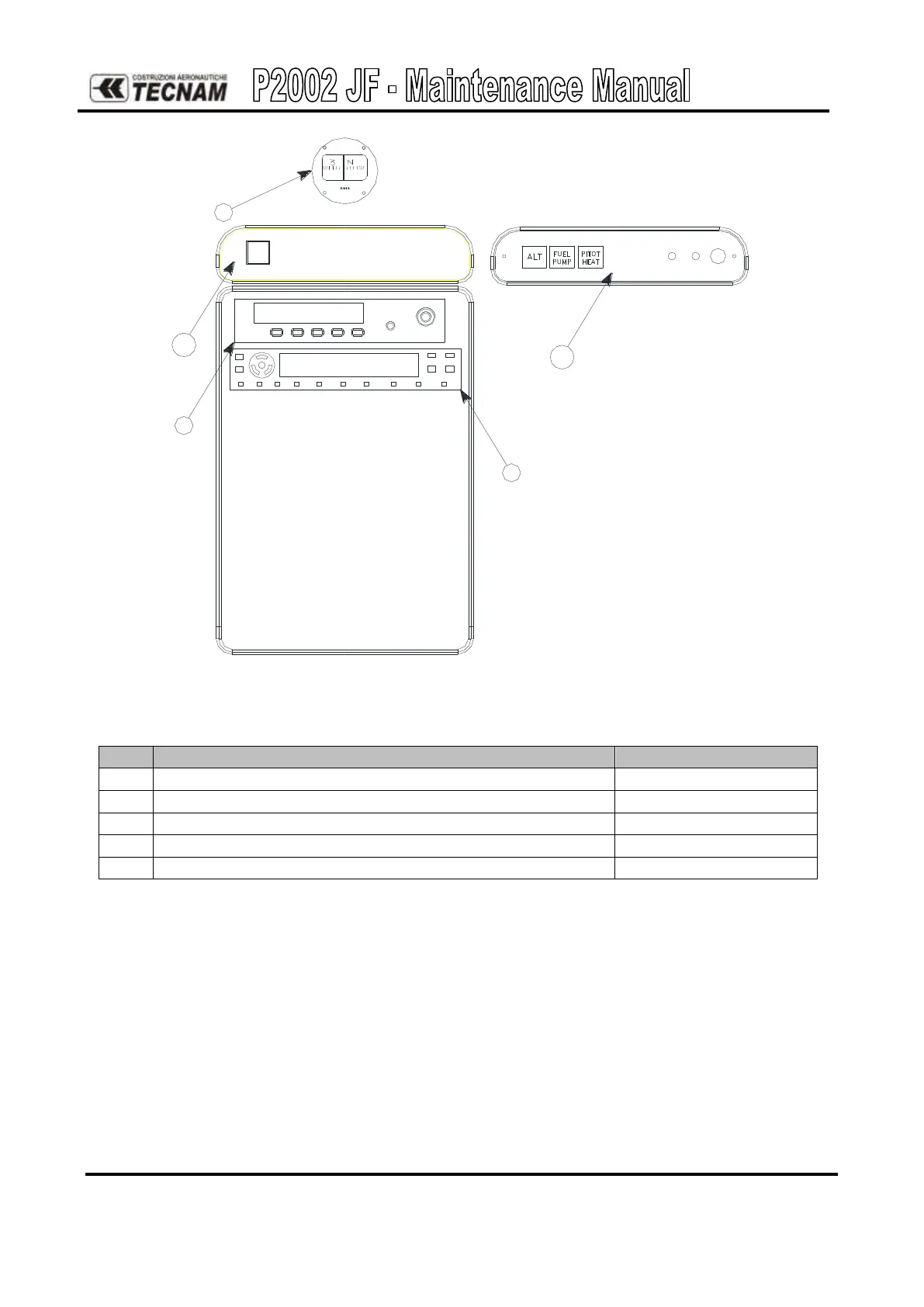

Figure 4. - Instrumental panel central panel (typical layout)
Item
Description
Reference chapter
1
GTX 328 (Audio Panel)
23
2
SL 30 (Comm/Nav)
23,34
3a
Alternator warning light
31
3b
Annunciator panel (exclusive for VFR Night)
4
Compass
31
