Tecnam P2002 JF - Connecting Rod Replacement; Control Rod

Page 202 2
nd
Edition – Rev 0
27-20
AILERONS – MAINTENANCE PRACTICES

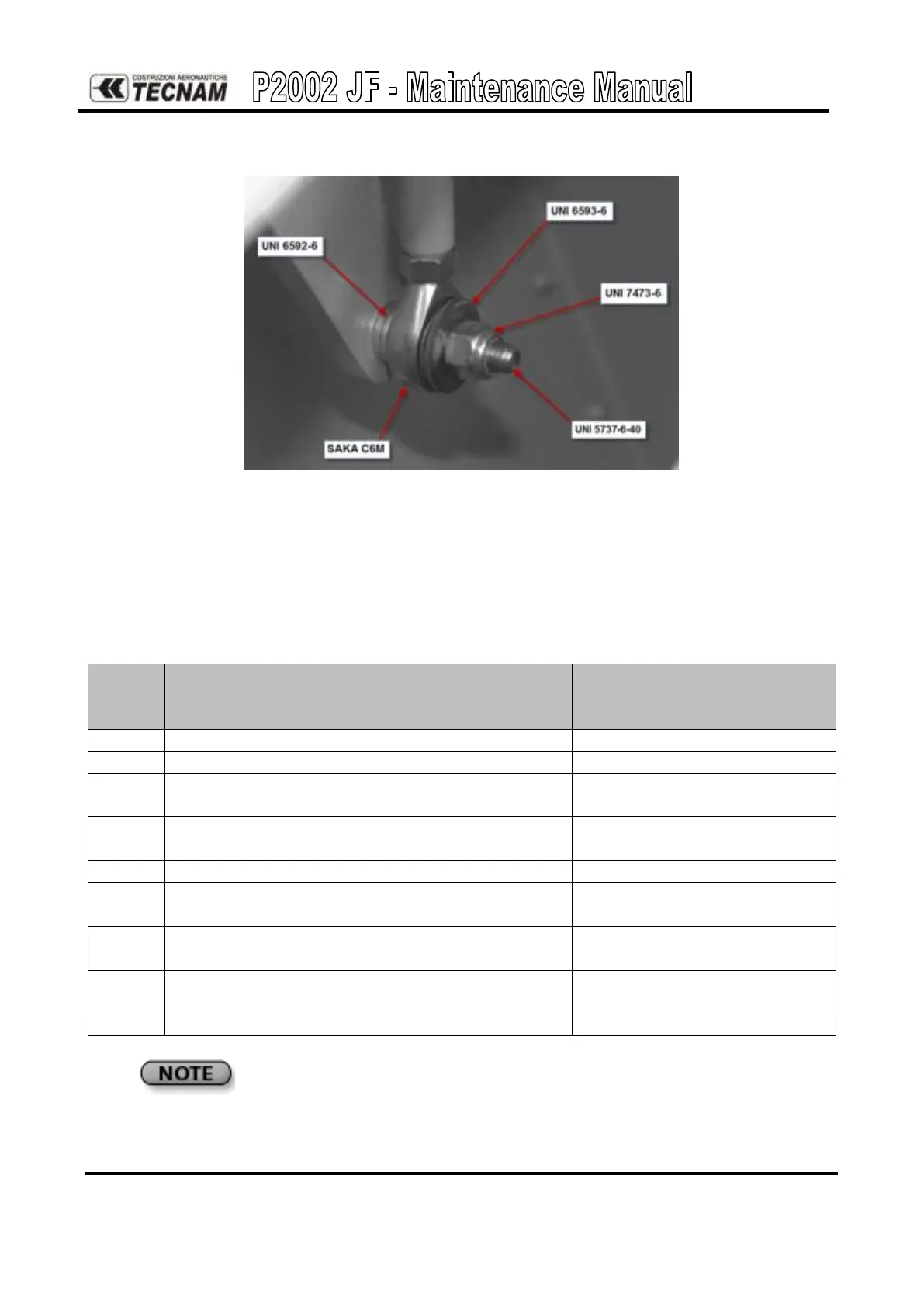

Figure 5. - Control rod
2. CONNECTING ROD REPLACEMENT
Step
Task description
Additional info & References
1.
Engage parking brake
2.
Remove aileron bellcrank inspection cap (cap 1).
See Chapter 06
3.
Disconnect control rods from bellcrank unscrewing
nuts
Refer to Figure 4 items A1 and
to fig. 5
4.
Disconnect control rods from aileron unscrewing
nuts, pull out control rod
Refer to Figure 4 items A1 and
to fig. 5
5.
Replace control rod (if required)
6.
Connect control rod to bellcrank: apply torque
according the torque value
See Chapter 20 Torque values
7.
Connect control rod to aileron, reinstall aileron
bellcrank inspection cap (cap 1)
See Chapter 06
8.
Check ailerons travel limits: UP 20° and Down 15°
(± 2°)
9.
Check that control axis travel is smooth and free.
If removed, re-apply always security wiring to screws and bolts
