Page 2 2
nd
Edition – Rev 0
33-10
INTERNAL LIGHTS – DESCRIPTION AND OPERATION
Dome light
In event of electrical failure, the dome light, installed on the cabin ceiling and directly
connected to the battery trough a circuit breaker, provides the pilot with an additional mean to
illuminate the cabin and instruments panel.

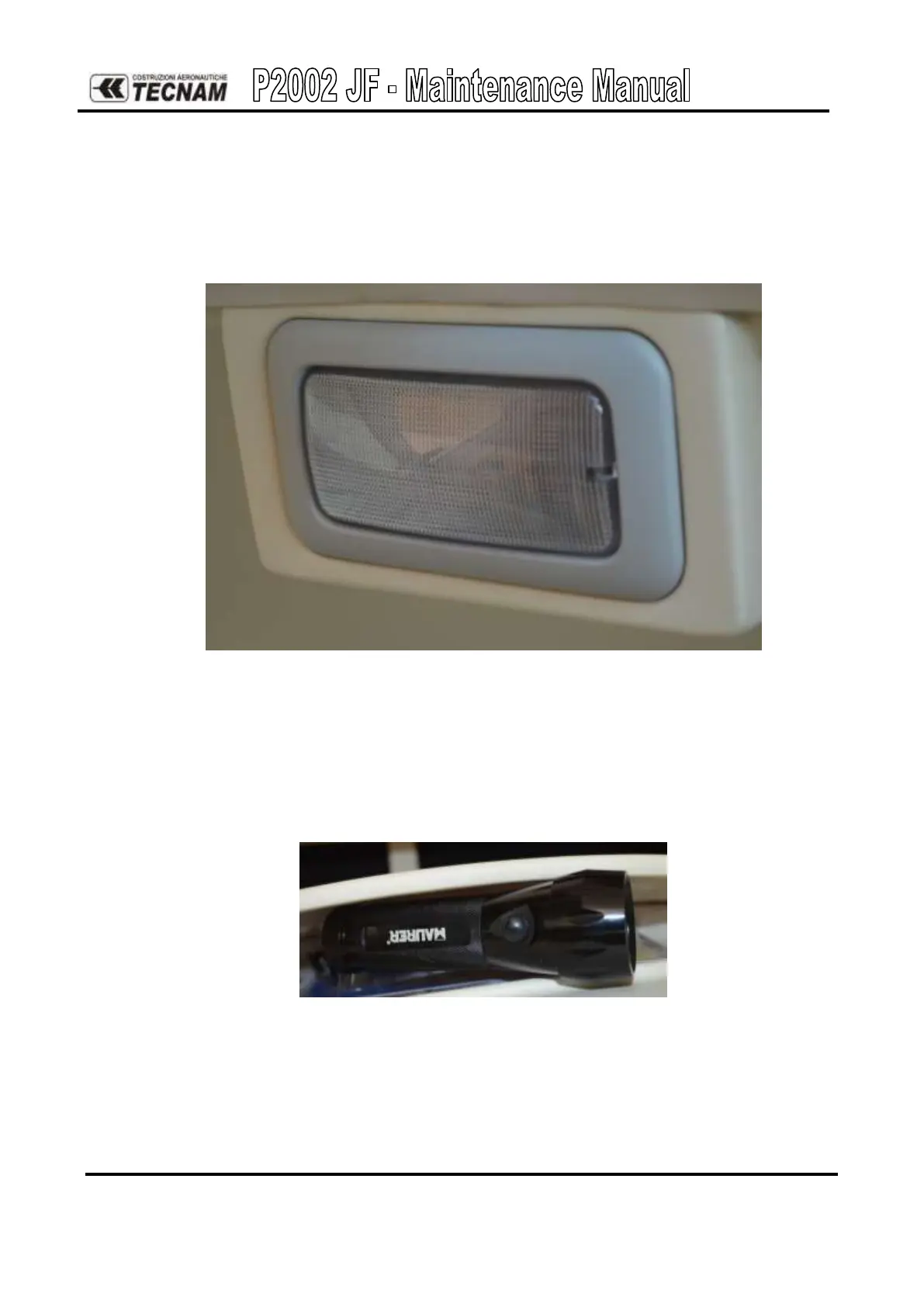

Figure 2. – Dome light
Torch
An emergency torch (3-AAA batteries needed) is provided in the cabin pocket.
Figure 3. – Torch
